Discontinued

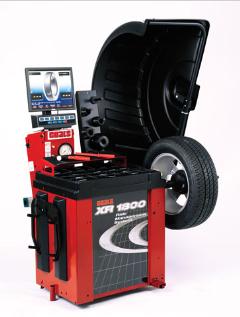

XR1800 Balancer
Description
Solve The Toughest Vibration Problems with the Coats® XR Series wheel balancers. The XR Series offers fast, easy-to use diagnostics and premium features – simplifying the balancing process and dramatically reducing comeback rates for your shop. With three distinct models to choose from, the Coats® XR Series is perfect for applications ranging from small to larger high-volume shops.
The Coats XR Series offers a total balancing solution – minimizing downtime, maximizing shop productivity, and delivering years of dependable service.
The XR1800 is sensitive enough to solve the most complex balancing challenge, and tough enough to use all day long.
Features
-
Simple, Interactive User Interface – Speeds technician input and mode selection
-
Positioning Pedal – Clamps wheel into stable position for easy weight placement
-
3-D Auto Data Entry – Collects parameters for analyzing balance. Just drop the hood and the balancer begins
-
Direct Tape-A-Weight® Locator – Eliminates guesswork – can do most Tape-A-Weights in just one spin
-
Slide Nut – For faster mounting, automatically starting when the hood is dropped
-
12 Balancing Modes – Several alloy options, behind the spoke, lug patch balance, and PAX
-
Multiple Operator Feature – Allows up to four techs to work at once
- Highly accurate width sonar system
-
Video display for clear instructions and weight placement
-
Diagnose vibration issues beyond balancing with automatic radial run out sensor
-
2-3 Second diagnostic cycle time – fast enough to use with every balance
-
Highly accurate sensor system replaces an out arm, increasing productivity and reducing machine wear
-
Onboard inflation for quicker rotation and balance jobs
-
Customizable Adapter Kits – MUST PICK ONE - Pick the adapter kit that best fits your shop
XR Series Adapter Kits (must pick one):
-
AMM113428 – Package 1 for Passenger Cars: standard cone kit, weight hammer, and calipers
-
AMM113593 – Package 2 for Passenger Cars through Light Trucks: standard cone kit, wheel weight hammer, calipers, 40mm pin plate system, application chart, hole gauge, and Balancer Mate storage system.
-
AMM113594 – Package 3 for Passenger Cars through Medium Duty Trucks: standard cone kit, wheel weight hammer, calipers, 40mm pin plate system, application chart, hole gauge, Balancer Mate storage system, light cone truck kit, and balancer chuck
Warranty
One (1) year
Product Specifications
- Balancing Modes: 12
- Tire Diameter: Up to 44"
- Rim Width Range: 2" to 20"
- Maximum Tire Weight: 160 lbs.
- Shaft Diameter: 40 mm
- Shaft Length: 8-5/8"
- Resolution (Round Off Mode): 0.01 oz, position 1.4
- Power Requirements: 115 V, 1 PH @50/60 Hz
- Auto Parameters: Distance/Diameter/Width
- Width Sonar: Yes
- Stop on Top: Yes
- Radial Runout: Yes
- Lateral Runout: No
- Footprint: 60"W x 52"D
- Shipping Weight: 685 lbs.
- Interface: LCD Video
- Printer: No
