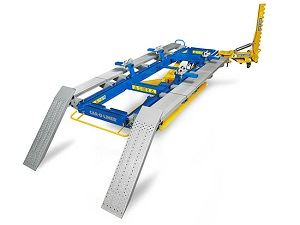

Quick42™ Alignment Bench Package

Item Number: CAR46642-PKG Supplier: CAR-O-LINER COMPANY

Description

The Quick42™ is a multi-functional bench that provides easy access for cosmetic repairs and offers the ability for anchoring on the same platform if structural repairs are needed, thus shortening repair cycle times and resulting in a ‘quick’ solution to increase shop profitability.

The Quick42™ frame bench utilizes centralized air and hydraulic hook-ups and offers optional mobility, automatic tilt, pulling power and a variably adjusted scissor lift which can raise the bench frame to a maximum working height of 58 inches.

Compatible with the Car-O-Tronic™ Vision2 X3 measuring system and EVO™ Universal Anchoring and Holding System, the Quick42™ offers a complete repair solution, providing technicians a timesaving process to easily diagnose, fixture, and repair automobiles to their pre-accident condition.

Features

Universal set-up - reduces time, cost and space
Integrated power unit - keeps floor clear of hydraulic and air lines
Lightweight removable ramps - for easy vehicle access
Powerful 10-ton draw aligner - with multi-angle pulling and 360° access
Compatible with EVO Systems 1, 2 & 3 and the Car-O-Tronic Measuring System
Flexible installation - fixed, mobile or pit mountings

Includes

CAR46642 Quick42 Frame and Tilt Lift
CAR30948 Bench Parts (B106 / B39BR)
(2) CAR30774 Hydraulic Oil for Power Unit
(2) CAR31040 Cable Guard
Ramp Kit for Quick42 (CAR39788)
Q170 Hydraulic Jack Kit (CAR39674)
Q16 Draw Aligner (CAR39630)
Q165 Hydraulic Hose (CAR39750)
T35 Chain Kit 10 Ton (CAR35889)

Warranty

One year

Product Specifications

Weight (Lift and work platform): 1,340 lbs.
In-ground Capable: Yes
Max. Lifting Height (In-ground): 42.5"
Loading Angle Bench: 3, 5°
Driving Ramps: 12°
Milled Surface for Measuring: Yes
Pulling Force (per Draw Alginer): 10 tons
Lifting Capacity (max. vehicle weight): 6,600 lbs.
Lifting Capacity (In-ground max. vehicle weight): 6,600 lbs.
Power: 1 Ph, 60 Hz, 110/220 V
Max. Width with Ramps: 75"
Max Height (floor to ramp): 58"
Work Area (Draw Aligner on both sides): 140"
Platform Length: 165"
Platform Width (without ramps attached): 44"
Max. Length (with Draw Aligner): 209"
Minimum Height: 19"
