Item shown may not be actual product.Product and price information are subject to change without notice.
$37,614.24 *
*log in for dealer pricing

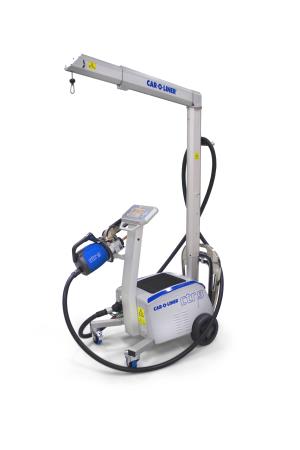

CTR9 208V Fully Automatic Spot Welder with 40mm, 80mm, 350mm, & 500mm C-Yoke
Item Number: CARNA90576
Supplier:
CAR-O-LINER COMPANY
Description
The CTR9 fully automatic welder comes with a new, revolutionized light-weight transformer gun. With its 355° swivel handle and ergo-grip, it enables perfect working positions for anyone, for any job. The gun is supported by a telescopic arm in a durable and lightweight extruded aluminum that can be easily adjusted both vertically and horizontally. A compact power unit with a low center of gravity gives mobility and stability, a 16,000-amp transformer and CANBUS communication ensure a perfect weld every time.
Features
- Telescopic support arm is designed to ensure maximum freedom of movement
- Lightweight transformer gun made of reinforced fiberglass is designed for fast-paced activity, while at the same time reducing the strain on your body
- Ergo-grip fully-closed handle fastened at both ends enhances maneuverability and allows you to hold the gun in a relaxed way in every working position
- Automatically establishes required settings to ensure the proper weld nugget
- Advanced quality control system that monitors and adjusts the welder to guarantee the total energy input
- Using the USB port you can easily upgrade your equipment
- Storage tray allows you to keep all the tools and accessories you need at hand
Includes
- CAR49317 C-Yoke 40mm Arm
- CAR49318 C-Yoke 80mm Arm
- CAR49319 C-Yoke 350mm Arm
- CAR49320 C-Yoke 500mm Arm
- CAR36590 Weld Logger
Warranty
24 months
Product Specifications
- Max. Voltage: 3 x 208V -5% +10%, 50 Hz- 60Hz
- Power supply fuse: 60A slow blow or circuit breaker Type K
- Protection type: IP21
- Insulation class: F
- Cooling type: Liquid cooled
- Compressed air supply, P1min- P1max: 5.0-10 bar (72-145 psi)
- Duty factor, x: 10%
- Maximum short circuit input current, ILCC: 317A
- Permanent power (100% duty factor), SP: 116 kVA
- Permanent input current, ILP: 324 A
- Maximum short circuit output current, 12CC: 16.0 kA
- Permanent output current (100% duty factor), I2P: 14.1 kA
- No-load voltage, U2D: 12.0 V
- Cooling power: 1000W
- Tank capacity: 20 l (5.3 gal)
- Rated cooling liquid flow, Q: 3 l/min (0.79 gal/min)
- Cooling liquid pressure drop: 1.79 bar (26.0 psi)
- Electrode force, FMIN - FMAX: 350-640 daN (787-1439 ibf)
- Weight: 273.5 lbs.
- Cable Length: 6 m (19.7 ft)
- Dimensions: 45" x 26" x 37"
