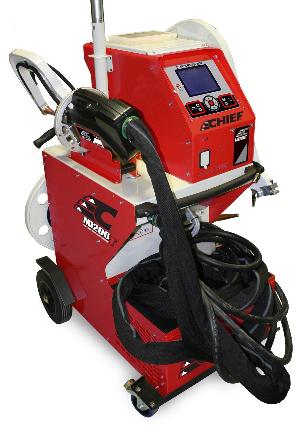

MI200T Spot Welder w/Gyro
Item Number: CASCEL025000
Supplier:
CHIEF AUTOMOTIVE TECHNOLOGIES
Description
Chief’s new MI200T Spot Welder is the ideal solution for all high strength steel body repairs. The MI200T offers worry-free welding through the TrueAutoMode ™ automatic welding system. TrueAutoMode™ detects the metal type and thickness, as well as the presence of adhesives and insulation, and then automatically adjusts and sets the welding parameters accordingly. It provides instant feedback to the technician about the weld result, while simultaneously logging the results into memory.
Features
- Designed for all vehicle body repairs with high strength steels
- Simple to follow LCD user interface
- High performance lightweight transformer pliers - 40% less power than standard cable plier welder
- C-pliers with multiple size arms available
- Detects and adjusts welding parameters
- Logs data for each repair
- Provides feedback on the quality of every weld
- Almost 20 feel of welding cable for increased reach
- High duty cycle - no waiting for cool down
- Liquid cooling standard - to the tips
Includes
- CASCEL051720 Overhead Balancer and 360° Gyro C Arm
- CASCEL021402 Insulated C1 Arm
- CASCEL054196 Arm Mounting Bracket
- CASCEL048935 Starter Box of Caps
Options
- CASCEL019140 C1 Arm 200 mm x 97 mm
- CASCEL021419 C3 Arm 177 mm x 205 mm
- CASCEL021426 C4 Arm 200 mm x 450 mm
- CASCEL019294 C5 Arm 167 mm x 67 mm
- CASCEL019775 C6 Arm 141 mm x 60 mm
- CASCEL021433 Insulated C7 Arm 430 mm
- CASCEL021440 Insulated C8 Arm 202 mm
- CASCEL020078 Insulated C9 Arm 300
- CASCEL053649 C11 Arm C to X Adapter
- CASCEL051010 Single Sided Gun
- CASCEL021457 C Arm Set (C2, C3, and C4)
Warranty
One (1) Year
Product Specifications
- Electrode Force: 550 daN with 8 bars (1236 ibf with 116 PSI)
- Ambient Temperature: 41 to 113° F (5° to 45° C)
- Protective System: IP 21
- Pliers Weight: 23.1 lbs. (10.5 kg)
- Fuse: 40 A slow blowing
- Frequency: 50/60 Hz
- Nominal Power by 50% ED: 20 kVA
- Welding Current Max.: 14,500 A DC (at 230V)
- Dimensions: 36.4"H x 25.6"W x 31.5"D (65 cm W x 92.5 cm H x 80 cm D)
- Approx. Weight without Accessories: 220 lbs. (100 kg)
