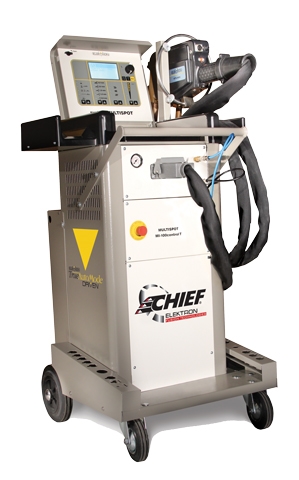

MULTISPOT® MI-100controlT Spot Welder
Item Number: CASEL520474
Supplier:
CHIEF AUTOMOTIVE TECHNOLOGIES
Description
Spot welding structural damage with TrueAutoMode™ - perfect output with no input.
Precision spot welds with just one setting - TrueAutoMode™.
Technicians spend less time setting up and more time welding with the fully automatic
spot welding technology. TrueAutoMode™ automatically detects material type and thickness and tool changes (both Plier and Electrode) while automatically adjusting weld time, amperage, and squeeze pressure based on the variance in resistance. You get a perfect
OEM approved weld every time.
Features
- Spot welding of structural body damage. Specifically designed for high-strength steels such as Boron, USIBOR, XIP, TWIP, and TRIP
- Quick tool change with automatic tool recognition
- Delivers uniform OEM approved quality
- Detects and adjusts welding parameters
- High performance lightweight transformer pliers
- Logs data for each repair
- Provides feedback on the quality of every weld
- 16 feet of welding cable for increased reach
Includes
- MTX-4900 Gun Head
- CASEL421020 MTX-4900 Transformer Pliers
Warranty
One (1) year
Product Specifications
- Power Supply Unit: 208-240V, 3 Phase
- Fuse: 80 Amp slow blowing
- Connection Cable Length: 33" (838.20 mm)
- Frequency: 50 / 60 Hz
- Maximum Welding Current: 12,000 A DC
- Ambient Welding Current: 104°F (40°C)
- Nominal Power by 50% ED: 60 kVA
- Dimensions: 25.6"W x 36.4"H x 25.6"L (650.24 mm x 924.56 mm x 650.24 mm)
- Protective System: IP 21
- Supply Power: 42 kVA
- Total Weight Including Accessories: Approx. 187 lbs. (84 kg)
