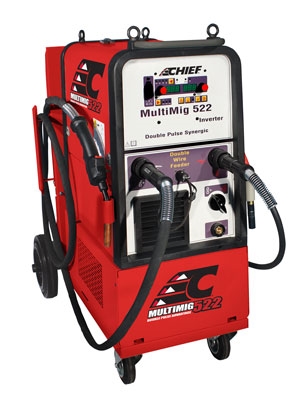

MultiMig 522 Welder
Item Number: CASEL900010
Supplier:
CHIEF AUTOMOTIVE TECHNOLOGIES
Description
Built-in cart for easy welder handling. Includes storage for gas cylinder. Double Pulse feature - mechanically and electrically controls the welding parameters to achieve a TIG-looking weld bead. Two separate torches can be mounted simultaneously with different reels and wire.
Features
- Synergic pulsed technology is required by most OEMs for aluminum welding. Includes a complete set of synergic programs in memory for brazing, welding and aluminum wire
- Inverter technology enables precision electronic control of output power for better quality welds
- GREEN technology - Integrated Power Factor Correction (PFC) technology reduces input power by avoiding energy waste found in most electronic-based equipment and ultimately reduces operating costs. High Harmonic Distortion is hard on the power grid and contains non-working energy, which is costly & environmentally wasteful
- Two types of torches can be used with MultiMig power source - a standard MIG torch or the unique push-pull torch. The Elektron push-pull system torch has an up-down digital current adjust at your finger tip, thanks to a feeder built into the grip. The very small and light weight torch (no bulky spool-gun) enables real-time control of welding process by control of the wire feed speed and current level. The push-pull system corrects many of the problems encountered when feeding the welding soft aluminum wire, down to 0.6mm
- Many programmable options are available to customize the unit operation to meet most working conditions.
Warranty
One (1) year
Product Specifications
- Single Phase Input: 230V 50/60Hz + 15% to -20%
- Supply fuse rating (slow blow): 30 A
- Input Power: 5.7 KVA - 20% / 4.1 KVA - 60%
- Current Adjustment Range: 15A to 200A
- Duty Cycle: 10 Min. 40°C
- According to IEC 60974.1 : 200A - 60% / 160A - 100%
- Stepless Regulation: Electronic
- Supplied: Standard
- Synergic Programs: "0.6/0.8/1.0 Fe-INOX 0.6/0.8/1/1.2AL" 0.8/1 Stainless Steel - CuSi3% "0.8/1 Cu-A18% 0.9 Flux cored"
- Max. Wire Spool Size: "Ø 200 mm / 5 kg Ø 300 mm / 15 kg
- Protection Class: IP 23 S
- Weight: 65.3 lbs.
- Dimensions: 23.2" x 37.5" x 39.5" h
