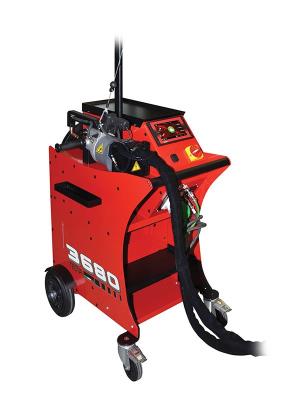

3680 Smart-Plus Resistance Spot Welder
Item Number: CBI3680P
Supplier:
CEBOTECH INC
Description
3680 Smart-Plus Resistance Spot Welder by TECNA
Features & Benefits
- Easily Welds Boron and all other Ultra High Strength Steels.
- Fully water-cooled to the welding caps on both gun and welding arm.
- USB Port and for easy upgrade of programs and software.
- USB port to download and store all weld record.
- Approved for weld bonding
Warranty
Two Years
Product Specifications
- Output Power (amp): 14,000 Amps
- Mains Voltage/Frequency: 208/230/240V, 50/60Hz 3 Phase, 480V 3 Phase Optional
- Electrode Force: Transgun 8679TS = 450 daN
- Mains Fuses (delayed): 60A
- Voltage: 230V 50/60Hz 3 phase
- Maximum Output Current: 14kA
- Dimensions: 94.8 x 25.2 x 32.4 in.
- Capacity of the Water Tank: 25L
- Weight: 308 lbs
- Cables: 4m long
- Nominal Power a 50%: 19 kVA
- Nominal Power at 100%: 13.5 kVA
- Maximum Welding Power: 60 kVA
- Thermal Current 100%: 1.8 kVA
- No Load Secondary Voltage: 8.7V
- Maximum Electrode Force: 450 daN
- Recognition Sensor: Full Automatic
- Gun Weight without Arms: 12.5 kg
- Total Weight (without accesories): 140 kg
