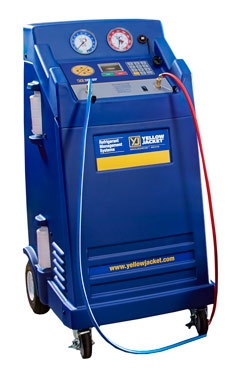

R-134a Refrigerant Management System - Hybrid Compatible
Description
Hybrid Compatible R134a Refrigerant Management System (RMS) with OEM approved flush feature for use with high voltage compressor A/C systems
NOTE: CCI37837 does not include built-in oil injection.
With the press of a button, you'll get full cycle recover/recycle/evaluate/recharge to bring the vehicle back to factory specifications. The other buttons give you the flexibility and efficiency for specific A/C services. The remote troubleshooting feature allows you to simply connect your system to a PC via USB and your service technician can troubleshoot remotely or at your location. The unique software program walks the service center step-by-step through the troubleshooting process, allowing the technician to diagnose and quickly recommend a fix. This software also allows you to change the display logo, update the firmware and change models for upgrades.
Features
- Allows simple and quick clearing of the service hoses to minimize PAG oil contamination
- Remote troubleshooting
- Advanced user interface and onboard diagnostics
- Vacuum hold feature
- High-side or low-side charging
- Fully automatic air purging constantly monitors and purges non-condensables
- Fast tank refills with no hose changes
- Refrigerant management system that keeps track of information on A/C service work
- Twin 1/2 hp compressors for speed and reliability
- Automatic shut-off for full tank and high pressure
- Heavy-duty shock resistant scale for accurate charging
- Two-stage, 5 c.f.m. vacuum pump for fast, high-efficiency evacuation
- Fully factory tested after a 34-point quality check
- Built-in self diagnostics
- Maintenance reminders for oil and filter changes
- Approved to SAE J2788 with hybrid addendum
- Automatic scale calibration to ± 1/4 oz. exceeds industry specifications for accurate charging every time
- 3-1/2" color-coded gauges with follower needles are easy-to-read even from inside the vehicle
- High impact ABS plastic cabinet with rounded corner and edges to help prevent damage to vehicles
- Large pneumatic tires for ease of mobility
- Integrated Printer
- Free training, set up, and lifetime technical support
Warranty
One year parts and labor
Product Specifications
- Air Purge: Automatic
- Hoses: 10'
- Hour Meter: Yes
- Compressors: (2) 1/2 hp hermetic
- Dimensions: 19.5"W x 29"D x 45"H
- Weight: 219 lbs.
- Recovery Tank: 50 lbs.
- Vacuum Pump : 2-stage 3 c.f.m.
