YELLOW JACKET® ManTooth® Wireless Pressure Temperature Gauge Automotive Kit
Item Number: CCI67007
Supplier:
RITCHIE ENGINEERING COMPANY INC
Description
The YELLOW JACKET® ManTooth® Wireless Digital Pressure/Temperature Gauge Automotive Kit uses Bluetooth® technology and an app to provide service centers and technicians the ability to perform an accurate vehicle A/C system check in less than three minutes (on average).
Product Features
- Two wireless Bluetooth® gauges
- High impact glass reinforced housing
- Integrated rubber case for easy handling
- Rechargeable LiPo battery rated for eight hours of continuous use
- Both R-134a and R-1234YF 5” couplers to minimize refrigerant loss
- Two temperature clamps
- AC charging adapter and USB cord
- Rugged case to protect the equipment when not in use
App Features:
- Works with iPhone, iPad or Android™ devices
- ManTooth® App available in Apple app and Google Play stores (over 10,000 downloads to date)
- Available languages include English, Spanish, French, Dutch and German
- Ability to log and e-mail results

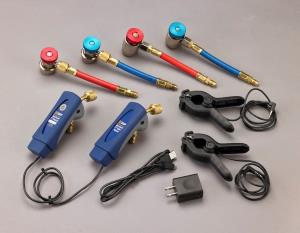

Includes
- OEM APPROVED: hi- and lo-side hoses
- R-134a and R-1234YF couplers
- Temperature clamps
- USB cord and charger,
- Case
Warranty
Two years
Product Specifications
- Refrigerant Database : R-134a and R-1234YF
- Pressure Sensing Resolution : 0.1 psi, 0.1 bar, 1 kPa, 0.001 MPa, 0.01 kg/cm^2
- Pressure Sensing Accuracy: 0.5% of full scale at 25°C; 1% of full scale 55°F to 130°F; 2% of full scale -40°F to 248°F
- Working Pressure: 0 – 700 psia (48.3 bar)
- Proof Pressure : Tolerable pressure without internal damage 1000 psia
- Burst Pressure : Tolerable pressure without loss of seal 1500 psia
- Temperature Sensor Range (Instrument) Sensing element: -40°F to 266°F (-40°C to 130°C) Max Cord temp: 176°F (80°C); Max Clamp Temp: 203°F (95°C)
- Temperature Display Resolution : 0.1°F or °C
- Temperature Accuracy (Instrument) : ±0.2°C (±0.36°F)
- Working Temperature : -4°F to 160°F (-20°C to 71°C) Limited by battery
- Storage Temperature : -4°F to 160°F (-20°C to 71°C) For best battery performance do not store at over 100°F (38°C)
- Working Humidity : 0-95% RH (non-condensing)
- IP Class : IP 50
- Battery Life : 10+ hours continuous
- Range : 30 feet (limited by phone or tablet Bluetooth radio strength) Bluetooth Radio Class 1 Bluetooth 2.1 Radio
- Dimensions: 6” L x 1.6” W x 2.3” H (15.3 x 4 x 5.8 cm)
- Weight: 0.5 lbs (225 grams)
