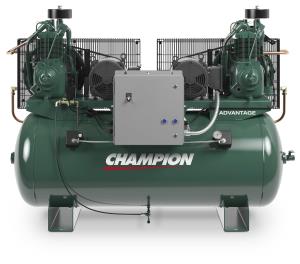

10HP Duplex Advantage Series Reciprocating Compressor 230V/3PH, 240H
Item Number: CHAADVAD54
Supplier:
INDUSTRIAL TECHNOLOGIES AND SERVICE
Description
Advantage Series Duplex Reciprocating Air Compressor - 10 hp - 240 Gallon Horizontal Tank, 230 Volt, 3 Phase
**Please confirm power requirements when ordering.
The Champion Advantage Series offers a complete line of compressed air packages that meet any application. The Advantage Series has been carefully engineered to stand up to years of use. Every Advantage Series compressors arrives with up to six standard, pre-installed accessories.
Features
- Heavy-duty two stage splash lubricated air compressor pumps
- Multi-finned cylinders
- Integral cylinder head
- Intercoolers for cooling between stages
- Reliable high flow disc valves
- Oversized main bearings
- Balanced crankshaft
- Oil level site glass
- Centrifugal unloader for loadless starting
- 0-300 p.s.i.g. air pressure gauge
- Factory fill with ChampLub lubricants
- ASME code air receiver (pressure relief valve, service valve, drain valve, pressure gauge)
- Vertical or horizontal configurations
- Oversize inlet filter - silencers
- Vibration isolator pads
- Low oil level monitor
- Mounted NEMA 1 Control panel with control voltage transformer
Warranty
Three (3) years standard warranty
*Extended six (6) year warranty option with purchase of Extended Warranty Kit
Extended warranty is available. Click Here for more information.
Product Specifications
- Approximate Weight: 2335 lbs.
- Tank Capacity: 240 Gallon, Horizontal
- Motor: (2) 10 HP
- Dimensions: 88"L x 38"W x 61"H
- Voltage: 230V / 3 PH
