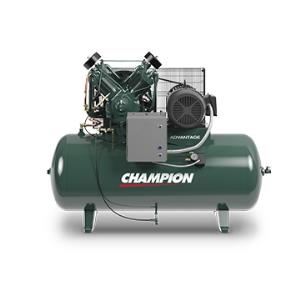

Simplex Air Compressor 25 hp -120 Gal. Horizontal 230V/3 Ph
Description
Fully Packaged/Advantage Air Compressor units offer the most value in a compressor. With a factory mounted and wired magnetic starter, low oil monitor, auto tank drain, vibration isolators, dual control (15 hp and above), and an air cooled aftercooler all as stadard benefits, the Advantage Series is the right choice.
Features
- All units are completely assembled, pre-wired, pre-piped and ready to install
- Two stage splash lubricated compressor pumps
- Mounted on ASME coded air receiver with a pessure relief and servcie drain valve, pressure gauge and vibration isloators
- 1800 r.p.m NEMA rated electric motor
- Centrifrugal unloader for loadless starts
- Automatic start/stop controls, dual control (15 hp and above)
- Low Level Oil/Fuel protection
- Magnetic starter in NEMA rated enclosure
- Automatic Tank Drain
- Factory filled with ChampLub lubricants
Note: 25 HP Simplex Advantage Compressor packages are also available in 208, 230 and 460 Volt, 3 phase configurations. Contact your program representative for more information.
**Please confirm power requirements when ordering.
Warranty
5 year limited warranty on compressor pump, receiver, and electric motor.
Extended warranties are available. Click Here for more information.
Product Specifications
- Dimensions: 74"L x 36"W x 65"H
- Tank Capacity: 120 Gallon, Horizontal
- Capacity At 175 P.S.I.G. (acfm): 90.1
- Electrical: 230V/3 Phase
- Weight: 1365 lbs.
