Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to CLFAR4115XAO

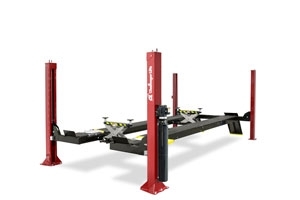

15K 4 Post Rack, Open Front, 23' Overall Length
Item Number: CLFAR4015XAO
Supplier:
CHALLENGER LIFTS INC
Description
The 4015 series four post lift comes in several productivity configurations including open and closed front general service flat decks and alignment rack vehicle lift packages that support today's latest camera imaging alignment systems. With the 4015 series auto lifts, shops are able to service small passenger cars and medium-duty trucks, vans and fleet vehicles on one automotive lift.
Features
- The highest rise in the industry provides more work space underneath vehicles
- Single point air actuated lock release disengages all column locks simultaneously
- 14 Level locking positions for a variety of alignment and general service tasks
- Compatible with the industry’s latest camera imaging systems
- Recessed stainless steel turning radius gauges provide accurate readings
- 80" Rear recessed free floating slip plates offer a wider range of 4 wheel alignment capabilities
- Durable non-skid louvered approach ramps for positive vehicle traction and technician safety
- Fully gusseted base plate and top shroud reduces column deflection and is less sensitive to uneven floors
- Large 9-1/2" heavy-duty steel pulleys with Teflon® bearings, plated steel pins and ½" cable diameter reduces wear and cable suspension system
Includes
- (2) 7,500 lb Rolling Jacks
- Internal Air Line System for the dual rolling jacks
- Flush Mount Stainless Steel Turning Radius Gauges
- Rear Slip Plates
- Multi-position Work-steps
- Automatic Wheel Stops
Warranty
Two years on parts, one year on labor from the date of installation.
Product Specifications
- Lifting Capacity: 15,000 lbs.
- Length Overall: 23' (7010 mm)
- Width Overall : 11'10" Front - 11'2-1/2:" Rear (3607 mm front - 3416 mm rear)
- Inside Columns: 120" Front - 120" Rear (3048 mm front - 3048 mm rear)
- Between Columns: 222-1/25" (5652 mm)
- Height of Columns: 8'3-1/2" Front - 7'9-1/2" Rear (2527 mm front - 2375 mm rear)
- Height of Runways: 7" (178 mm)
- Width of Runways: 20" (508 mm)
- Width between Runways: 43" (1092 mm)
- Maximum Wheel Base (based on 30" tire diameter): 210" (5334 mm)
- Rise Height: 78" (1981 mm)
- Maximum Two-Wheel Alignment: 194" (4927 mm)
- Four-Wheel Alignment: 88" - 158" (2235 mm - 4013 mm)
- Air Supply Requirements: 90 -0120 p.s.i. Clean & Dry
- Motor: 2 HP
- Voltage (1 Phase standard - 3 Phase is available): 208V - 230V
- Speed of Rise: 85 Seconds
- Minimum Recommended Bay Size: 12' x 26'
