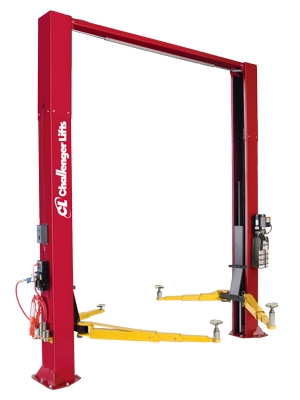

Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to CLFCL10V3DPCQC
10K Versymmetric Two-Post Lift, Dual Pendant Controls, Quick Cycle
Item Number: CLFCL10V3DQ
Supplier:
CHALLENGER LIFTS INC
Description
10,000 lb. Verysmmetric® 2-Post Lift with Offset Front Arms and Three-Stage Rear Arms, Dual Pendant Controls
Challenger's ALI/ETL Certified Versymmetric® Two-Post Lifts maximize your revenue potential by having the flexibility to raise vehicles both symmetrically and asymmetrically in a single service bay. 10,000 lb. Versymmetric® Two-Post automotive lifts can accommodate just about anything that comes in for service and are equipped with one of three Versymmetric® arm configurations.
Features
- Quick Cycle hydraulic enhancement package permits full lift rise in approximately 24 seconds (on standard height lift) while lowering speed is improved to approximately 17 seconds.
- Dual pendant power controls' Up/Down power button is always within the technician's reach and dual single point technical lock release system provides lift operation from ether column. Also enables expedited spotting by providing an unobstructed view of the lifting points.
- Double your service capabilities! Heavy-duty arms are specially engineered to lift vehicles both true symmetrically and asymmetrically to increase a bay's servicing flexibility and revenue potential.
- An overhead non-load bearing cable equalization system and small base plate leaves the floor clear so tools can be moved easier and minimizes floor obstructions.
- Technicians can save valuable time by disengaging both column locks at the same time with our single point mechanical lock release system.
- User friendly arm restraints automatically disengage when lift is fully lowered for easy positioning of arms and securely engage when lifts is raised.
- Adjustable arm restraint shafts compensate for uneven floors.
- Grease fittings located on arm pin bushings minimize corrosion to keep arms swinging freely.
- 48" elongated carriage design decreases load on bearing.
- Heavy-duty 5" diameter pulley and 5/16" cable reduces stress on equalization system and increases cable life.
- Fully gusseted base plate design reduces column deflection.
- Padded overhead shut off system prevents vehicle damage from being raised too high.
- Rubber door guards protect vehicles from door damage when accessing driver controls.
Accessories
- CLF10313 (2) 6" Stack Adapters
- CLF10315 Stack Adapter Kit
- CLFTFPK Electric Vehicle Footpad Kit - designed to give a flat lifting surface
Warranty
Two years on parts, one year on labor, and 5 years structural from the date of installation
Product Specifications
- Lifting Capacity: 10,000 lbs.
- Rise Height (measured including tall 6" stack adapters): 74.125"
- Overall Height: 11'2" or 11'8" / with 2' Extension: 31'2" or 13'9" / with 3' Extension: 14'2" or 14'8"
- Cylinder Overall (Full Stroke): 11'11"
- Adjustable Width Overall: 11'6.5" - 11'11"
- Drive-Thru Clearance: 100" / 104.5"
- Floor to Overhead Switch: 10' 8-1/2" or 11' 2-1/2" / with 2' Extension: 12' 8-1/2" or 13' 2-1/2"/ with 3' Extension: 13' 8-1/2" or 14' 2-1/2"
- Front Arm Reach - Min / Max: 20" / 42"
- Rear Arm Reach - Min / Max: 37.625" / 60"
- Screw Pad Height - Min / Max: 3.875" / 6.125"
- Inside Columns: 110" / 114.5"
- Low Lock Height: 12" Net Rise
- Motor / Voltage (Single Phase standard) - Standard : 2HP, 208-230V
- Motor / Voltage (Single Phase standard) - with Quick Cycle option: 3HP, 208-230V
- Speed of Rise: 24 Seconds
- Max Load per Arm: 2,500 lbs.
- Ceiling Height Required: 11'11" / with 2' Extension: 13'9" / with 3' Extension: 14'9"
