Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to CLFCL12A2DPCQC

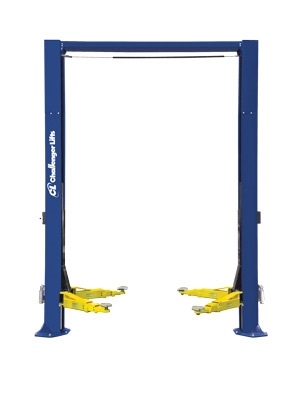

12,000 lb. 2-Post Lift with 2' Extension, Dual Pendant Controls, and Quick Cycle
Item Number: CLFCL122DPCQC
Supplier:
CHALLENGER LIFTS INC
Description
Service more vehicles and make more money with Challenger Lifts' CL12, 12,000 lb. capacity 2-post lift. The CL12 comes standard with 3-stage front and 3-stage rear arms providing the advantage of lifting many common cars, trucks, vans and SUVs within rated capacity.
We've also added our time-tested productivity tools, including Quick Cycle Technology and Dual Pendant Controls to boost your efficiency.
Features
- 3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay
- 60″ lifting carriage design increases lift life
- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Padded overhead shut off system prevents vehicle damage
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Premium powder coat finish provides long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Dual pendant power controls' Up/Down power button is always within the technician's reach and provides lift operation from either column. It also enables
expedited spotting by providing an unobstructed view of the lifting points. - Quick Cycle hydraulic enhancement package permits full lift rise in approximately 40 seconds while lowering speed is improved to approximately 17 seconds.
Includes
- CLF10319 Truck Adapter Extension Kit
Warranty
One year labor, two years functional parts, and five years structural parts.
Product Specifications
- Lifting Capacity: 12,000 lb. (5443 kg)
- Rise Height: 84¾" (2153 mm)
- Height Overall: 15' 8" (4775 mm)
- Width Overall : 11' 10" (3607 mm)
- Drive-Thru Clearance: 103½" (2629 mm)
- Floor-Overhead Switch: 181" (4597 mm)
- Arm Reach - Minimum: 27½" (700 mm)
- Arm Reach - Maximum: 59" (1500 mm)
- Adj. Adapter Height: 5" to 12⅝" (127 mm to 320 mm)
- Adj. Adapter Height (with Medium Extensions): 8" to 9⅝" (203 mm to 244 mm)
- Adj. Adapter Height (with Hight Extensions): 11" to 12⅝" (279 mm to 320 mm)
- Inside Columns: 114½" (2908 mm)
- Motor : 3 HP
- Voltage (1 Phase Std.): 208v - 230v
- Speed of Rise: 40 Seconds
- Ceiling Height Required: 15' 9" (4801 mm)
