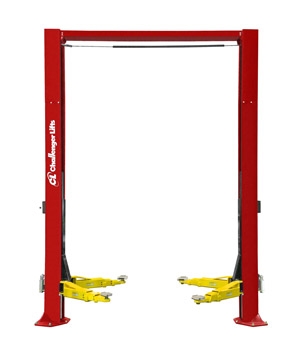

12K Heavy Duty Adjustable Wide Two Post Lift

Item Number: CLFCL12A Supplier: CHALLENGER LIFTS INC

NOTE: To lift electric vehicles (EVs), optional Electric Vehicle Footpad Kit, CLFTFPK, must be used.

Our 12,000 lbs. capacity CL12A 2-Post lift can accommodate a wide range of standard cars, trucks, vans, and SUV's within the same service bay with +6" & 12" width adjustment and optional +1' & +2' height extensions. Standard features also include 3-stage front and rear arms.

Features

+6” & +1’ width adjustment and 6" height adjustment
When using to lift Electric Vehicles for battery removal, set in the widest width for best performance
Premium telescoping screw pads adjust to multiple heights minimizing the need for additional adapters
Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
Premium powder coat finish provides long-lasting durability
Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
ALI Certified

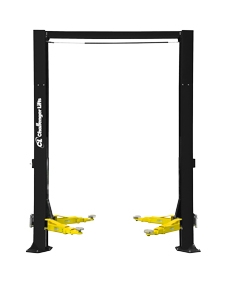

Available with optional 1’ (CLFCL12A-1) and 2’ (CLFCL12A-2) height extensions
Optional dual pendant and quick cycle features available to improve speed and spotting for technicians

Available Color Options

Red, Blue, Black - specify color choice at time of order.

Includes

CLF10315 Truck Adapter Extension Kit

Accessories

CLFTFPK Electric Vehicle Footpad Kit - designed to give a flat lifting surface

Warranty

Click here for warranty information.

Product Specifications

Lifting Capacity: 12,000 lbs.
Lift Configuration: Symmetric
Arm Configuration: 3-Stage, front and rear
Rise Height: 84 3/4" with 6" adapters
Overall Height: 13' 8" or 13' 2"
Overall Width: 11' 10", 12' 4", 12' 10"
Drive Thru Clearance: 103 -1/2", 109-1/2", 115-1/2"
Floor to Overhead Switch: 13' 2" or 12' 8"
Arm Reach: Min: 27-1/2", Max: 59"
Screw Pad Height: Min: 5", Max: 12-3/8" (includes 6" stack adapter)
Inside Columns: 9' 6-1/2", 10' 1/2", 10' 6-1/2"
Standard Motor / Voltage: 2HP, 208V-230V, 60Hz, 1 Ph
Rise Time: 63 Seconds
Required Ceiling Height: 13' 9" or 13' 3"
