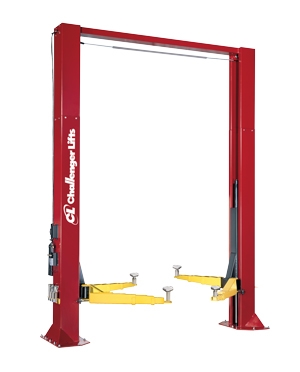

16,000 lb. Heavy-Duty 2-Post Symmetric Lift with 3-stage Arms
Item Number: CLFCL16-0-3S
Supplier:
CHALLENGER LIFTS INC
Description
Challenger's new 16,000 lb. capacity heavy-duty cargo vehicle 2-post lift comes standard with 3-stage front and 3-stage rear arms. This new heavy-duty 2-post lift safely and adequately accommodates any cargo van or transportation van/bus with step sides or lower profile ground effects. Lift model comes complete with all necessary adapters to lift vehicles and has optional adapters specific for certain cargo-carrying vans.
Features and Benefits
- 3-stage front and 3-stage rear arms give extended reach and retraction, making it easier to lift a wider variety of cargo carrying vans.
- The standard pad adapter is 16 percent lower than the standard 16,000 lb capacity 2-post lift to accommodate lower profile cargo vans.
- Single point air actuated lock release allows the technician to disengage locks in both columns simultaneously.
- The oversized steel pulley reduces stress on the equalization system and provides increased durability.
- 60" lifting carriage helps to give an equal spread of weight which can prevent premature column wear.
- Padded overhead shut off system prevents vehicle damage should a vehicle come in contact with the overhead shutoff bar.
- Optional 3 phase electrical is also available. Specify at time of order.
Available Color Options
- Red, Blue, Black - specify color choice at time of order.
Warranty
Click here for warranty information.
Product Specifications
- Lifting Capacity: 16,000 lbs.
- Lift Configuration: Symmetric
- Arm Configuration: 3-Stage Front/Rear
- Max. Load Per Arm: 4,000 lbs.
- Min. Rise Height: 75.5"
- Max. Rise Height (w/ Stack Adapters): 81.5"
- Overall Height Options: 162" / 168" / 174"
- Overall Width Options: 154.75"/ 160.75"/ 166.75"
- Drive-Thru Clearance: 104.25" / 110.25" / 116.25"
- Floor to Overhead Switch: 155" / 161" / 167"
- Min. Arm Reach: 36.625"
- Max. Arm Reach: 75"
- Min. Screw Pad Height: 4.75"
- ALI Certified: Yes
- Max. Screw Pad Height: 6.5"
- Between Columns: 120" / 126" / 132"
- Motor / Voltage: 3HP, 1Ph, 60Hz, 208-230v
- Air Supply Requirements: 90-120 psi
- Rise Time: 62s
- Min. Ceiling Heights Required: 13'8" / 14'2" / 14'8"
