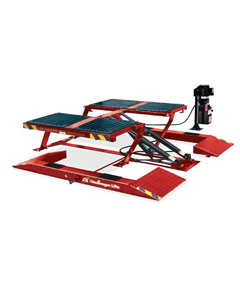

10,000 lb. Short-Rise Lift
Item Number: CLFSRM10
Supplier:
CHALLENGER LIFTS INC
Description
The CLFSRM10 is a great choice for brake and tire servicing needs. Dual hydraulic cylinders provide a 10,000 lb. lifting capacity picking up vehicles ranging from small passenger cars to light trucks.
Standard 2 position spotting blocks and auxiliary adapters reach a wide range of vehicle pick up points. Lug nuts and other small parts are always within reach with the lift's inset storage trays. Its small footprint compared to other lift models make it the perfect fit.
Features
- Lift comes standard with 4 two position adapter blocks for increased vehicle spotting versatility.
- Standard storage trays are conveniently placed on each side fo the lift to prevent lug nuts and other small parts from being misplaced.
- Dual cylinders provide stable 10,000 lb. lifting capabilities to accommodate a wide range of vehicles.
- Floor mounted diamond plated approach ramps help to prevent slipping.
- 3 locking positions allow technician to work at their ergonomic height to increase productivity and minimize fatigue.
- The powder coat finish provides a long lasting durable finish.
Warranty
Two years on parts, one year on labor from the date of installation
Product Specifications
- Lowered Height: 4-1/4" (108 mm)
- Overall Width: 7'1" (2159 mm)
- Width Between Platforms: 23" (584 mm)
- Lifting Capacity: 10,000 lb. (4536 kg)
- Locking Bar Heights: 13-13/16" (351 mm), 18-3/8" (467 mm), 21-1/4" (540 mm)
- High Adapter Position: 6-3/4" (171 mm)
- Outside Width of Platforms : 72" (1829 mm)
- Platform Overall Length: 50" (1270 mm)
- Ramp & Platform Overall Length: 50" (1270 mm)
- Overall Length: 90-1/2" (2299 mmm)
- Rearward Movement: 13-1/4" (337 mm)
- Voltage: 115V
- Raised Height: 22" (559 mm)
- Low Adapter Position: 4-3/4" (121 mm)
- Motor: 1 HP/1 Ph /60 Hz
