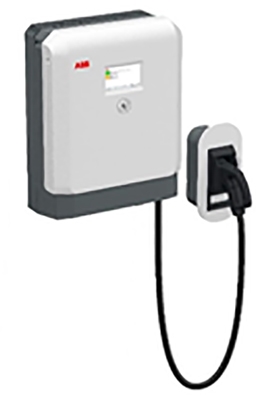

Terra Wallbox ABB 24kW Single 3PH (DC Fast Station), 3-Yr Commercial Cloud Plan
Description
Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Three Phase, Three Year Commercial DC Cloud Plan
Intelligent design: Compact, Convenient, Connected
- The Terra DC wallbox is the smart e-mobility investment. Developed together with leading electric vehicle manufacturers, the DC wallbox offers fast charging in an ultra-compact footprint.
- Safety: built-in protection is a core principal of both ABB’s business and the Terra DC wallbox. Made by ABB to meet the highest safety standards, proven in independent certification tests worldwide: the ABB Terra DC wallbox is safe and reliable, for residential use too.
- Terra DC wallbox is a futureproof investment supporting current and future EVs with high voltage charging, applicable to a wide variety of use cases, in an ultra-compact footprint, that is safe and reliable, for residential use too.
Features
- Load management
- Smart charging via OCPP
- Setup for external energy meter integration for dynamic load management
- Ready for integration with advanced smart building energy system
- Built-in safety
- Overcurrent
- Overvoltage and undervoltage
- Ground fault
- Surge protection
- PE (protective earth) continuity monitoring
- Leakage current monitor protection
- Connectors
- UL Variants:
- 1-Phase input, single output: CCS1
- 3-Phase input, single output: CCS1
- UL Variants:
- Intelligent design
- UL variants:
- Single phase: 19.5 kW @ 208 V / 60A ; 22.5 kW @ 240 V / 60A
- Three phase: 0- 22.5 kW, 24 kW (peak) / 60A
- Charging Voltage: CCS: 150- 920 V DC
- Outdoor and indoor installation NEMA 3 &IP 54
- Connectivity: GSM/ 3G/ 4G | Ethernet | RFID
Available Options
CPITERRDC1PCCS1YRC - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Single Phase, One year Commercial DC Cloud Plan
CPITERRDC1PCCS3YRC - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Single Phase, Three year Commercial DC Cloud Plan
CPITERRDC3PCCS1YRC - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Three Phase, One year Commercial DC Cloud Plan
CPITERRDC3PCCS3YRC - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Three Phase, Three year Commercial DC Cloud Plan
Warranty
Two years parts.
How to Choose ChargePoint Stations for Dealerships:
Use the table below to choose the right station(s) for your dealership:
| CT4K (Level 2) |
CPF50 (Level 2) |
CPE250 (62.5 Level 3 or DC Fast) |
ABB (24kW Level 3 DC Fast) |
|
|---|---|---|---|---|
| Application | Front of dealership | Service department | Front or Rear of dealership | Service department |
| Charging Speed | Adds up to 25 miles of Range Per Hour (RPH) | Adds up to 30+ miles of Range Per Hour (RPH) | Adds up to 200 miles of Range Per Hour (RPH) | Adds up to 90 miles of Range Per Hour (RPH) |
| Mounting Installation | Wall and bollard mounted | Wall and bollard mounted | Bollard mount | Wall and bollard mounted |
| Access Controls | Manage who can use station and when | Access limited to service department | Manage who can use the station and when | Access limited to service department |
| Charge Drivers a Fee | Flexible options to charge fees for using station | No pricing ability | Flexible options to charge fees for using station | No pricing ability |
| Number of Charging Ports | One and two port options available | One port | One Port | One Port |
| Charging Connector Type | Standard J1772™ connector charges all EV models | Standard J1772™ connector charges all EV models | Standard CCS1 & CHAdeMO | Standard CCS |
| . |
