Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to CPITERRDC3PCCS1YRD

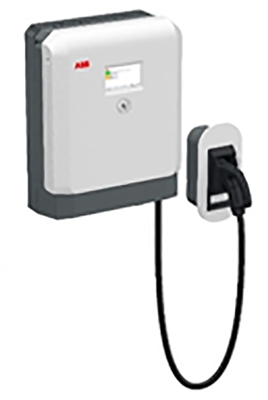

Terra Wallbox ABB 24kW Single 3PH (DC Fast Station) 1Yr
Description
Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Three Phase, One year Cloud services.
Intelligent design: Compact, Convenient, Connected
- The Terra DC wallbox is the smart e-mobility investment. Developed together with leading electric vehicle manufacturers, the DC wallbox offers fast charging in an ultra-compact footprint.
- Safety: built-in protection is a core principal of both ABB’s business and the Terra DC wallbox. Made by ABB to meet the highest safety standards, proven in independent certification tests worldwide: the ABB Terra DC wallbox is safe and reliable, for residential use too.
- Terra DC wallbox is a futureproof investment supporting current and future EVs with high voltage charging, applicable to a wide variety of use cases, in an ultra-compact footprint, that is safe and reliable, for residential use too.
Features
- Load management
- Smart charging via OCPP
- Setup for external energy meter integration for dynamic load management
- Ready for integration with advanced smart building energy system
- Built-in safety
- Overcurrent
- Overvoltage and undervoltage
- Ground fault
- Surge protection
- PE (protective earth) continuity monitoring
- Leakage current monitor protection
- Connectors
- UL Variants:
- 1-Phase input, single output: CCS1
- 3-Phase input, single output: CCS1
- UL Variants:
- Intelligent design
- UL variants:
- Single phase: 19.5 kW @ 208 V / 60A ; 22.5 kW @ 240 V / 60A
- Three phase: 0- 22.5 kW, 24 kW (peak) / 60A
- Charging Voltage: CCS: 150- 920 V DC
- Outdoor and indoor installation NEMA 3 &IP 54
- Connectivity: GSM/ 3G/ 4G | Ethernet | RFID
Available Options
CPITERRDCWALLCCS11YR - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Single Phase, One year Cloud services.
CPITERRDCWALLCCS13YR - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Single Phase, Three year Cloud services.
CPITERRDCWALL3CC11YR - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Three Phase, One year Cloud services.
CPITERRDCWALL3CC13YR - Terra Wallbox by ABB 24kW Single Port (DC Fast Station), Three Phase, Three year Cloud services.
Warranty
Two years parts.
How to Choose ChargePoint Stations for Dealerships:
Use the table below to choose the right station(s) for your dealership:
| CT4K (Level 2) |
CPF50 (Level 2) |
CPE250 (62.5 Level 3 or DC Fast) |
ABB (24kW Level 3 DC Fast) |
|
|---|---|---|---|---|
| Application | Front of dealership | Service department | Front or Rear of dealership | Service department |
| Charging Speed | Adds up to 25 miles of Range Per Hour (RPH) | Adds up to 30+ miles of Range Per Hour (RPH) | Adds up to 200 miles of Range Per Hour (RPH) | Adds up to 90 miles of Range Per Hour (RPH) |
| Mounting Installation | Wall and bollard mounted | Wall and bollard mounted | Bollard mount | Wall and bollard mounted |
| Access Controls | Manage who can use station and when | Access limited to service department | Manage who can use the station and when | Access limited to service department |
| Charge Drivers a Fee | Flexible options to charge fees for using station | No pricing ability | Flexible options to charge fees for using station | No pricing ability |
| Number of Charging Ports | One and two port options available | One port | One Port | One Port |
| Charging Connector Type | Standard J1772™ connector charges all EV models | Standard J1772™ connector charges all EV models | Standard CCS1 & CHAdeMO | Standard CCS |
| . |
