Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued

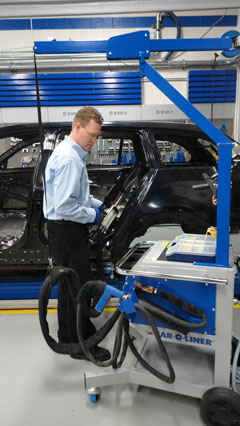

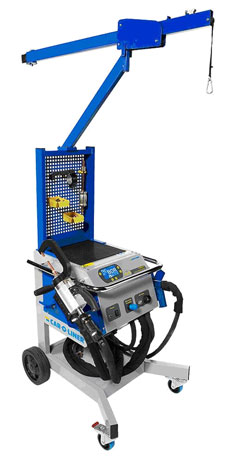

CR500 DA Resistance Spot Welder
Item Number: CR34810
Supplier:
CAR-O-LINER COMPANY
Description
The CR500 DA Resistance Spot Welder from Car-O-Liner provides quality spot weld on all of today's high and ultra-high strength steels. It has a compact rugged design featuring powerful cutting edge inverter technology. The sophisticated software, with unique automatic control system, guarantees perfect welding results. The wide range of accessories makes the CR500 DA extremely versatile.
Features
- Smart Control Panel - The world class user interface (MMI) provides complete control over th weld process in an extremely easy to use format. Detailed weld results, including the actual welding current, time, and squeeze pressure, are displayed for every weld.
- Flexible and Compact - The four cable system quickly switches between double side welding and multi-function gun processes, like single side welding, dent puling, and heating shrinking.
Benefits
- Two-sided spot welding
- Versatile multi-function gun
- Single sided welding
- Spot hammer welding
- Moulding clip rivet welding
- Carbon shrinking
- Contact shrinking
- Nut and bolt welding
- Stitch welding
Accessories
CR32254 Cable Support for CR300/CR500
CR32228 Fender Edge Kit
Warranty
Two (2) years
Product Specifications
- Input Voltage: 3 x 400V 50-60Hz, 32A; 3 x 460V 50-60Hz, 30A
- Protection Type: IP21
- Inverter Frequency: 2000Hz
- Welding Amperage: 11 500 A, current controlled
- Cooling System: Air (2 fans) (with overheat warning)
- Welding Cable Cooling: Air
- Electrode Force: At 7.5 bars - 300daN
- Cable Length: 2.5m including tong
- Dimensions: 920mmH x 820mmW x 920mmL
- Total Weight: 135 kg
