Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to CAR47123

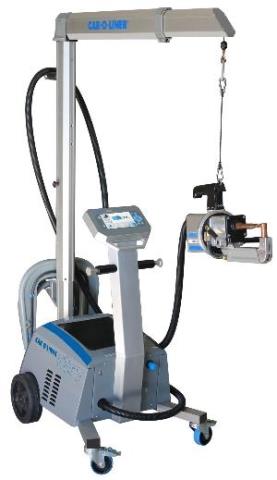

CTR7 Resistance Spot Welder, 208V
Item Number: CR47123
Supplier:
CAR-O-LINER COMPANY
Description
The CTR7 Resistance Spot Welder, Car-O-Liner's new generation welding machine, provides quality spot welds with all new high-strength and ultra-high strength steels using cutting edge inverter technology. Set the material type and thickness. The CTR7 will automatically calculate the remaining weld parameters.
Features
- Innovative design with low center of gravity for increased safety and easy handling
- Transformer gun technology - greater work range (up to 20 feet)
- Flexible, aluminum, telescopic support arm with integrated balancer
- Powerful - with welding currents up to a maximum of 12,000 Amps
- Sharp, easy-to-navigate, 7" color screen
- Water cooled - with a large 20L tank
- Weldlogger - Documentation and registration of welding data via PC and USB
Includes
- CR41944 C-Yoke, 40 mm throat depth, air cooled
- CR43034 C-Yoke, 80 mm throat depth, water cooled
- CR43035 C-Yoke, 350 mm throat depth, water cooled
- CR43036 C-Yoke, 500 mm throat depth, water cooled
- CR42095 Electrode Set with 13 mm caps and storage case
- CR44962 Aluminum Support Arm with integrated balancer
- WeldLogger - Documentation and registration of welding data via PC and USB
Accessories
- CR41888 Multi-Function Gun Kit
Warranty
Two (2) Years
Product Specifications
- Weight with 80 mm yoke, ca: 24 lbs. (11 kg)
- Approx. Weight (without support arm): 202 lbs. (92 kg)
- Cable Length: 19.7 ft (6 m)
- Compressed Air Supply: 5-10 bar (72-145 PSI)
- Cooling Power: 1000W
- Dimensions: 25.5"W x 44.5"H x 36.5"D (650mm x 1130mm x 930mm) without support arms
- Electrode Force: 0 - 500 daN (0 - 1124 ibf)
- Flow Rate: 0.53 gal/min (2 L/min)
- Fuse (delayed action): 16-32 Amp
- Input Voltage: 208 V 3 phase 60 Hz
- Insulation Class: F
- Max. Output Amperage: 12,000 Amp
- Max. Power: 75 kVA
- No-load Voltage: 12.5 VDC
- Protection Type: IP21
- Tank Capacity: 5.3 gal (20 L)
- Transformer C-Gun Cooling Type: Liquid Cooled
- Transformer C-Gun Insulation Class: F
- Transformer C-Gun Primary Power (100% duty cycle): 20 kVA
- Transformer C-Gun Primary Voltage/Frequency: 560 V/10 kHz
- Transformer C-Gun Protection Type: IP21
- Transformer Gun (10 KHZ) Output Current: 0-200 Amp
- Transformer Gun (10 KHZ) Output Voltage: 560 V
- Welding Amperage: 10,000 Amp (current controlled)
