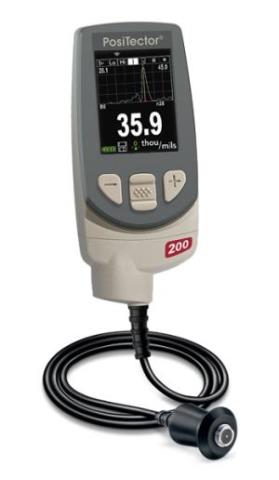

PosiTector 200B3 Advanced Ultrasonic Coating Thickness Gage
Description
DeFelsko's PosiTector 200 B ultrasonic coating thickness gage non-destructively measures the thickness of paint ("topcoat") applied to plastic vehicle bumpers/fascias with or without Advanced Driver Assistance Systems (ADAS). The PosiTector 200 B3 Advanced model is ideal for measuring paint thickness on automotive plastic bumpers, fascias and other exterior and interior parts. Featuring simple operation, it arrives ready to measure and requires no adjustment for most applications. The PosiTector 200 B3 Advanced is capable of measuring both TOTAL thickness AND up to 3 individual layer thicknesses in a multi-layer automotive coating system.
Features
- Proven non-destructive ultrasonic technique
- Solvent, acid, oil, water and dust resistant – weatherproof
- Internal memory for 100,000 readings in up to 1,000 batches to be viewed or downloaded
- Graphics readout for detailed analysis of the coating system
- Bluetooth 4.0 technology for data transfer to a mobile device running the PosiTector App or optional portable printer.
- Statistics Mode continuously displays average, standard deviation, and number of readings while measuring
- Measure up to 3 individual layer thicknesses in a multi-layer coating system
- High Contrast backlit display for bright or dark environments
- Certificate of Calibration showing traceability to PTB included (Long Form)
Includes
- PosiTector Advanced gage body
- DFLPR200B PosiTector 200B probe
- DFLGELT Ultrasonic couplant gel
- DFLSTDSHIM Non-certified precision plastic shims (set of 5)
- DFLLENSHIELD Protective lens shield (set of 5)
- Protective rubber holster with belt clip
- Wrist strap
- 3 AAA alkaline batteries
- Convenient carrying case
- Long Form Certificate of Calibration traceable to PTB
- USB cable
- PosiSoft Software
- Instructions
Accessories
- DFLSTDCSS Certified precision plastic shims (set of 8)
Warranty
Two years
Product Specifications
- Probe: 200B
- Typical Applications: Polymer coatings on plastic, wood, etc.
- Measurement Range (polymer coatings): 13 - 1000µm, 0.5 - 40 mils
- Accuracy: +/- (2µm + 3% of Reading), +/- (0.1mil + 3% of reading)
- Minimum Layer Thickness (for multiple-layer applications only): 13µm, 0.5mil (dependent on material being tested)
- Dimensions: 5.25" x 2.4" x 1.1"
- Weight: 5 oz.
