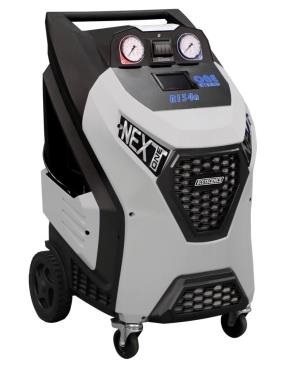

ECO NEXT ONE Hybrid R134a A/C Recycling Service Station


Item Number: EEAC820B    Supplier: ECOTECHNICS

Description

ECO NEXT ONE Hybrid R134a A/C Recycling Service Station

Features

  • Fully automatic operations with automatic service valves, meaning operator intervention is not required after the connection of hoses to the vehicle and the start of the procedure
  • Status light provides immediate information about the workflow status from a far distance allowing the technicians to monitor the operation while performing different activities
  • Large 5” touch screen display with intuitive and user-friendly interface software
  • Integrated thermal printer conveniently issues a report for customers with the service information
  • Automatic discharge of non-condensable gas purge
  • Hybrid Function allows for services on hybrid vehicles
  • U.S. Vehicle Database included
  • Clear and visible window for vacuum pump oil level check
  • Practical cap for an easy vacuum pump oil refill
  • Long service hoses and two large side pockets for storage
  • Easy access for maintenance
  • Quick setup

Accessories

  • EEAC330-23B Filter Dryer
  • AEK102-N21 Flush Tank
  • EAK102-N21-4 R134a Flush Adapters
  • ACT71-0A Vacuum Pump Oil
  • EEAC331-20 Printer Paper

Warranty

One year

Product Specifications

  • Voltage: 110V 60 Hz
  • Vacuum Pump : 100 L/min (3,5CFM) mbar
  • Tank Scale Resolution: 10 gr
  • Working Temperature : 10/50 ˚C
  • Refrigerant Tank: 30 lbs.
  • Hoses: 3 meters
  • Service Valves: Manual
  • Display: 5" Color Touchscreen
  • Leak Check in Vacuum: Standard
  • Hybrid Function: Standard
  • Flushing Kit: Optional
  • Bottle Heater: Standard
  • Printer: Standard
  • Non-Condensable Gas Purge: Automatic
  • Database: Standard
  • Status Light: Standard
  • Dimensions: 43" x 26" x 28"
  • Weight: 180 lbs.
