Discontinued
Superseded to EEDM596FK

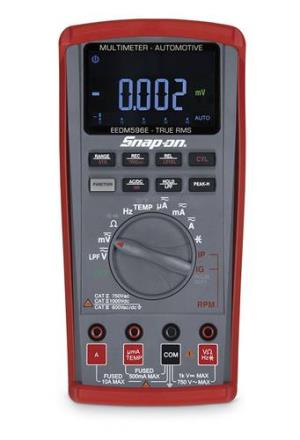

Digital RMS Multi-Meter

Item Number: EEDM596EK Supplier: SNAP-ON TOOLS

Description:

EEDM596EK True Digital RMS Multi-Meter

Features:

LCD Display - 40,000 count with 42 segment bar graph.
REC (Record Mode) - Store minimum, maximum, and average readings over a measurement period.
RANGE - Manually select the appropriate range.
AC/DC - Manually select AC or DC measurement function.
FUNCTION - Toggle between functions on Ohm, TEMP, and IG modes.
REL (Relative Mode) - Factor out lead resistance for improved low ohm measurements or compare readings to a known standard. Can also be used for differential measurements.
CYL (Cylinder) - Selects the number of cylinders in IG mode.
HOLD - Lock the reading on the display for hard to read locations for future reference.
PEAK-H (Peak Hold) - Capture signals spikes as fast as 1mS to diagnose intermittent events.
Hz (Frequency) - Measure the frequency of sensors and signals.
Ω (OHMS/RESISTANCE) - Measure the resistance of spark plug wires, coils, sensors, and continuity of wiring.
ACmV and DCmV Ranges - Additional 40 millivolt DC range with 0.01 mV resolution for improved accuracy when performing low voltage measurements.
DCV, ACV (DC Volts, AC Volts) - Measure the voltage of circuits and sensors. Measure the voltage of ABS wheel sensors.
TEMP (Temperature) - Measure temperature with included temperature probe.
AC/DC Current Functions - Measure the parasitic draw from the battery with ignition off.
CAPACITANCE - Measure the capacitance of condensors or capacitors found in today's hybrid automobiles.
High Resolution DCmV Range - Additional 40 millivolt range with 0.01mV resolution for improved accuracy when performing low voltage measurements.
IP, IG (Automotive Functions) - Measure RPM, Duty, Dwell, mS pulse width, Frequency.
BUILT-IN TILT STAND - Built into the instrument housing adding strength and integrity to the design
Quickly Test Condition of Internal Fuses - Determine the status of the internal fuses before you open the battery /fuse compartment. Simply set the instrument to the diode test function, plug the black test lead into the "VΩHz" input jack and touch the prod end of the black lead to the metal inside the "A" or "mA" input jack. If the meter reads ".OL", the fuse is blown. If there is a numeric reading on the LCD, the fuse is good.

Warranty:

Seven (7) years against defects in material and workmanship.
