Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to EELR591APKG

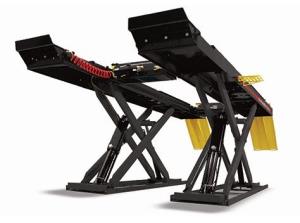

14K Scissor Alignment Lift Surface Mount
Item Number: EELR591A
Supplier:
JOHN BEAN
Description
John Bean Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to five scissor lifts to fit into the same operating space as four 4-post lifts.
Features
- 14,000 lb. lifting capacity
- Open front and rear access between lifting platforms
- Low profile height with long approach ramps easing drive on
- Wide drive on runway platforms improves ease of vehicle positioning
- Recessed front turn plate pockets and full floating rear slip plates give a uniform surface for alignment
- Maintenance reduced rear slip plates use oversized encapsulated bearings, roll upward protected from environment debris
- Re-enforced scissor / base structure and runway platforms improves alignment accuracy
- Multi-position work step provides comfortable under hood access
- 4 hydraulic cylinders, cross aligned arrangement provides secure lift power and added safety
- Contained top and bottom durable steel re-enforced glide blocks deliver smooth lift operation
- Up to 18, level locking locations improves ergonomic working positions
- Approach ramps are equipped with end sliders minimizing noise and reducing floor damage
- Adjustable maximum lift height, suiting locations with low ceilings
- Safety systems include:
- Mechanical locking with pneumatic safety lock release form control console
- Flow sensing valves in hydraulic control circuit
- Redundant hydraulic safety system with cross aligned hydraulic circuits
- Integrated hydraulic fuse protection, preventing inadvertent lowering in the event of a hydraulic line leak
- Lock pins to secure against slip plate movement when loading/unloading vehicles
- Wheel chocks, front wheel stops and self-activating rear wheel stop preventing roll offs
- Integrated air kit allows unrestricted clear access for operation of rolling jacks
- On-board FRL; (Filter, Regulator, Lubricator) provides clean and lubricated air, reducing maintenance and protecting pneumatic
- All models have been tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011
Warranty
One year
Product Specifications
- Maximum Capacity: 14,000 lbs. (6350 kg)
- Overall Width (minimum / maximum): 92-1/2" (2350 mm) - 94-1/2" (2400 mm)
- Overall Length: 270-7/8" (6880 mm)
- Maximum Raised Height: 72" (1829 mm)
- Minimum Lowered Height: 10" (254 mm)
- Runway Width: 26" (660 mm)
- Width Between Runways: 38" (965 mm) - 40" (1016 mm)
- Four-Wheel Alignment Wheelbase: 88" (2235 mm) - 155" (3937 mm)
- Two-Wheel Alignment Wheelbase: 180" (4572 mm)
- General Service Wheelbase: 197" (5004 mm)
- Lift Time (based on full load): 75 - 85 seconds
- Power Rating (at the lift): 230V, 1Ph, 60Hz, 20A
- Maximum Operating Pressure: 4600 PSI (31.7 MPa)
- Pneumatic Filtration Oil Type: Snap-on # IM6 or Equivalent
- Hydaulic Oil Capacity: Tank Size: 4.0 gal. (15L) / Lift Capacity: 6.0 gal. (22.7L)
- Hydraulic Oil Type: ISO 32 (10 weight) hydraulic oil
- Console Dimensions: 16-1/2" x 14-1/8" x 45-3/4" (419 x 359 x 1162 mm)
