Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to EEWA545G

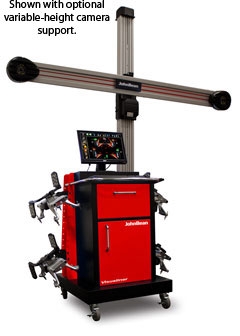

Visualiner 3D1 X-CEL Imaging Alignment System
Item Number: EEWA545P4
Supplier:
JOHN BEAN
Description
Now featuring higher resolution cameras and smaller targets!
Do more alignments in less time with the Visualiner 3D1. The Visualiner 3D1 with Variable-Height Camera Support features continuous measurement of camber, caster and toe. Live on-screen displays eliminate the need for time-consuming re-measurement procedures. This aligner is a great choice for new start-up shops.
Features
- EZ-Link* - Displays OEM service information related to computer-controlled steering systems.
- VODI™*- Vehicle Orientation Directional Indicator, guides the technician through the measuring process and reduces the amount of time spent walking back and forth from the vehicle to the aligner console.
- Live 3D Modeling* - Provides accurate, real-time measurements that reduce setup and measurement times and generate serious productivity benefits.
*Patented and/or patent-pending features
Please call a program representative to place your order and specify color choice.
Includes
- 00055502000 Steering Wheel Holder
- 00000096000 Brake Pedal Depressor
- EAK0268J52A Universal Wheel Clamps and Shatter-proof Imaging Targets
- Camera Beam Assembly
Options
- EAA0321J19C Variable-Height Camera Support
- EAK0289J06A Premium Turntables
- EAK0277J28A Paddle Kit for Premium Turntables
- EAK0277J39A 4-Post Rollback Kit
- EAK0277J40A 12K Scissor Rollback Kit
- EAK0277J47A 12K Scissor Roll Forward/Rollback Kit
- EAK0277J67A 10K/14K Scissor Rollback Kit
- EAK0277J45A Hunter/Rotary Rollback Kit
- EAK0256J71A Ride Height Target Kit
- 8-05320A Frame Angle Gauge
- EAK0268J62A Universal Wheel Clamp Extension Kit (to 28")
- EAK0268J63A Alloy Quick Clamp Kit
- P-1826 Convex Mirror 36" Wide with Hardware
- EAK0222J83A Hub Adapter Kit (Wheel-Off Alignment)
- EAK0268J08A Remote Display Readout with 30' Cable
- EAK0289J71A Universal Wheel Clamp Floor Stand
- EAA0321J01A Fixed-Height Camera Support
- EAK0289J36A Wall/Pit Camera Support (Adjustable 36"-60")
- EAK0289J63A Wall/Pit Camera Support (8")
- EAK0289J64A Electronic-Tilt Camera System
- EAK0289J23A Remote Control
- EAK0289J86A VIN Code Reader
- EAK0289J91A Drive-on Camera Aid
Extended Waranty
3 year warranty on parts and labor.
Product Specifications
- Track Width: 48" - 96"
- Power Requirements: 120/230V, 1 Ph, 60 Hz
- Wheel Size: 13" - 24"
- Wheelbase: 79" - 180"
- Tire Diameter: Unlimited
