Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to EEWA546P4
Visualiner 3D2 Imaging Alignment System
Item Number: EEWA546AL22
Supplier:
JOHN BEAN
Discontinued. For suggested replacement, reference EEWA546P4M.
Description
The Visualiner 3D2 Imaging Alignment System uses advanced technology to improve the productivity and performance levels of shops world wide by offering fast alignment, precision measurements and reliable service.

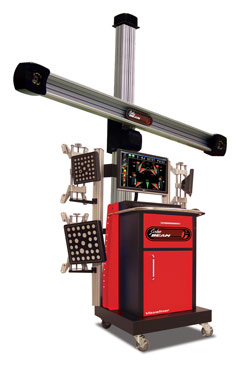

(Shown at right with optional Variable-Height Camera Support. For Visualiner 3D2 Imaging Alignment System that includes the Variable-Height Camera Support, see EEWA546AL22M.)
Features
- EZ-Access (Wheels Off)* - Avoid working around the wheels when making adjustments. Access hard-to-reach adjustment points.
- Software for Modified Vehicles - Minimize tire wear for vehicles with aftermarket wheels or other modifications.
- Advanced Vehicle Dimensions - Advanced measurements such as setback, wheelbase, track width, diagonal measurements, and tire diameter are displayed to assist the operator in identifying driveability issues.
- EZ-Link* - Displays OEM service information related to computer-controlled steering systems.
- VODI™*- Vehicle Orientation Directional Indicator, guides the technician through the measuring process and reduces the amount of time spent walking back and forth from the vehicle to the aligner console.
- iShop™, ShopKey™, ASANet™, Mitchell1 compatible - Maintain consistency with OEM specs and access resource libraries.
- Live 3D Modeling* - Provides accurate, real-time measurements that reduce setup and measurement times and generate serious productivity benefits.
*Patented and/or patent-pending features
Includes
- 00055502000 Steering Wheel Holder
- 00000096000 Brake Pedal Depressor
- EAK0289J23A Remote Control
- EAK0268J52A Universal Wheel Clamps and Shatter-proof Imaging Targets
- EAK0256J71A Ride Height Target Kit
- Camera Beam Assembly
Options
- EAK0289J06A Premium Turntables
- EAK0277J28A Paddle Kit for Premium Turntables
- EAK0277J39A 4-Post Rollback Kit
- EAK0277J40A 12K Scissor Rollback Kit
- EAK0277J47A 12K Scissor Roll Forward/Rollback Kit
- EAK0277J67A 10K/14K Scissor Rollback Kit
- EAK0277J45A Hunter/Rotary Rollback Kit
- 8-05320A Frame Angle Gauge
- EAK0268J62A Universal Wheel Clamp Extension Kit (to 28")
- EAK0268J63A Alloy Quick Clamp Kit
- P-1826 Convex Mirror 36" Wide with Hardware
- EAK0222J83A Hub Adapter Kit (Wheel-Off Alignment)
- EAK0268J08A Remote Display Readout with 30' Cable
- EAA0321J19C Variable-Height Camera Support
- EAA0321J01A Fixed-Height Camera Support
- EAK0289J36A Wall/Pit Camera Support (Adjustable 36"-60")
- EAK0289J63A Wall/Pit Camera Support (8")
- EAK0289J64A Electronic-Tilt Camera System
- EAK0289J86A VIN Code Reader
- EAK0289J91A Drive-on Camera Aid
Warranty
Three (3) year warranty on parts and labor.
Product Specifications
- Tire Diameter: Unlimited
- Track Width: 48" - 96"
- Wheelbase: 79" - 180"
- Power Requirements: 120/230V, 1 Ph, 60 Hz
- Wheel Size: 13" - 24"
