Discontinued

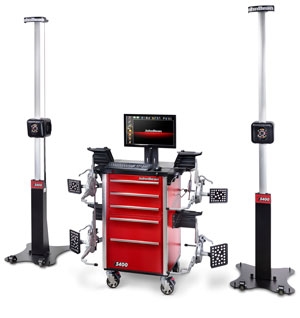

V3400 Alignment System with AC400 Clamps and VIN Scanner
Item Number: EEWA553BV
Supplier:
JOHN BEAN
Description
The John Bean V3400 Wireless Imaging Wheel Alignment System provides flexible installation, usage and mobility options. Patented digital camera tracking automatically adjusts to the height of the vehicle.
Features
- Precision measurement system with patented automatic vehicle height tracking.
- Versatile, Accurate Hardware
- Wireless Communication - eliminates connections between the camera towers and the cabinet to ease mobility and provides a variety of installation configurations.
- Continuous third camera calibration provides accurate readings and reliable alignment results
- Speed and Productivity
- Automatic vehicle height tracking - the camera system follows the height of the vehicle, eliminating the need to adjust the aligner when you move the lift
- Get readings in less than two minutes on a wide variety of vehicles and wheel sizes
- Comprehensive vehicle specification database with frequent updates ensures you always have the information to do the job right
- Automatic Caster Sweep
- System automatically detects when the steering wheel is turned and initiates the caster sweep function saving time and eliminating error
- Help Videos
- View detailed videos of how to make needed adjustments to complete even the most complex task
- Rolling Radius
- Identify mismatched tire sizes - a potential cause of vehicle pulling and drive train damage
- Cross-Diagonal
- Identify frame or structural issues before alignment adjustments are made
- A-Arm Adjust
- Compound meter provides visual reference for simultaneous caster and camber adjustment for vehicles with adjustable control arms
- EZ-Toe
- Turn the front wheels and access difficult adjustment points while still displaying centered toe rings
- Cradle Adjust
- Compound meter provides visual reference for simultaneously SAI and caster adjustment for vehicles with front sub=frames / cradles
- John Bean AC400 Touchless Alignment Wheel Clamping System With XD Targets
- Secure Clamping Without Touching the Rim
- Only the tire is contacted.
- Clutch limited clamping force ensures accurate and repeatable results.
- Durable and lightweight magnesium construction.
- Fast and Easy to Use
- Clamping is accomplished with a single fast-action knob
- No accessories needed to accommodate the full range of tire sizes
- Large, comfortable handle allows ergonomic use
- XD targets are lighter and take up less space than previous designs.
Includes
- EAK0289J86B VIN Scanner
- 00055502000 Steering Wheel Holder
- 00000096000 Brake Pedal Depressor
- EAK0289J23A Remote Control
- EAK0256J71A Ride Height Target
- EAK0268J05A Color Inkjet Printer
- Two Wheel Chocks
Accessories
- EAK0305J50A Dual Wheel Adaptors for AC400 Clamps: EAK0305J50A
- EAK0305J78A Mobility Kit
- EAK0305J58A Portable Platforms for Towers
- EAK0305J77A Docking Cleats for Portable Platforms
- EAK0305J84A AC200 Wheel Clamp Accessory
- EAK0305J85A AC400 Wheel Clamp Accessory
Warranty
OEM Program One (1) year warranty on labor, three (3) years on electronic parts, and one year warranty against defects in material and workmanship on all other (non-electronic) parts.
Product Specifications
- Wheel Base: 79" - 180" (201cm - 457cm)
- Shipping Weight: 501 lbs (227kg)
- Power Requirements: 100-240V 1Ph 50/ 60Hz UL201, C22.2, CE Approved
- Tire Diameter: 19" - 39" (48.3cm - 99.1cm)
- Track Width: 48" - 96" 122cm - 244cm)
