Item shown may not be actual product.Product and price information are subject to change without notice.
$15,006.60 *
*log in for dealer pricing

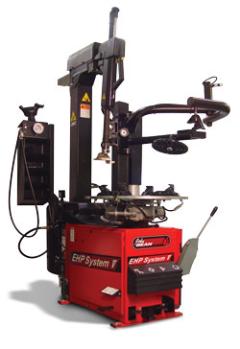

EHP System V Automatic Tilt Tower Tire Changer
Item Number: EEWH517B
Supplier:
JOHN BEAN
Description
The tire fitting machine JBC EHP SYSTEM V features standard equipment that complies with the "wdk" directive (German rubber industry association) for handling UHP and run flat tires. The professional tire fitting machine with patented MH320 Pneumatic Bead Assist is equipped to handle wheel diameters up to 30". The machine achieves its flexibility thanks to its configuration, which allows fitting and removal of all tires commonly found on the market in the passenger and commercial vehicle sector up to PAX/CSR tires (optional). The JBC EHP SYSTEM V’s combination of speed, versatility and safety translate to better wheel service and increased profits for your business.
Features
- Adjustable Four-Jaw Clamp
- Self-centering nylon-covered clamps grip securely and protect the wheel
- Reduced-angle jaws ensure no slippage
- Twin-Cylinder Clamping
- Two powerful clamping cylinders provide uniform clamping pressure & increased clamping power
- Extra Wheel Protection
- Replaceable nylon inserts for demount heads prevent wheel scratching
- Replaceable polymer remount heads are also available for extended protection
- Ergonomically Positioned Bead Breaker
- Provides precise power and can be toggled with the foot pedal as needed
- Both the stiffest and the softest sidewalls are a snap
- No damage to tires while loosening the bead
- Integrated Pressure Limiter
- Stops air flow once pressure has reached 55 p.s.i. (3.5 Bar), thereby preventing accidental tire over-inflation
- Pneumatic Bead Assist
- Wheel Centering Depressor provides downward pneumatic pressure on the wheel's center clamping. Assists operator in seating the wheel clamp jaws between the tire and the wheel flange on stiff, hard-to-depress sidewalls.
- Power Lifting Disc lifts tire up and off the wheel flange, reducing the effort of demounting the lower bead.
- Bead Depressor follows the tire as it rotates, positioning the bead in the wheel's drop center for faster, easier tire mounting.
- Pressure Roller pushes bead down, allowing the operator to position the tire tool in order to lift the bead over the mount/demount head.
- Optional Safety Restraint Arm
- Positively restrains wheel and tire assembly to the tire changer during the inflation process
- Reduces potential for injury by the unlikely event of wheel or tire failure
- Simple swing-arm design easily swings in from the left
- Allows the technician to quickly and safely perform tier inflation without disturbing the tire changing procedure
- Positioning Safety Interlock Switch ensures that the SRA is centered on the wheel nd tire assembly before the inflation process can begin
- Anti-Rotation Lock prevents the SRA from moving during the inflation process or in the event of an accidental explosion
- Gravity Lock engages automatically without operator intervention and ensure the wheel is secured prior to inflation
Includes
- 4929338 VW/Audi Mounting Head for rims with protruding spokes. Includes 4030767 plastic protection
- Standard Service Pack Outside Clamping Jaw Protectors (set of 4), snap-in jaw protector, protective insert for mount/demount head (4 each)
- EAA0304G15A Protective Cover for bead breaker shovel
- EAA0304G52A Rim Protector, snaps onto rim of wheel (3 each – use with Wave Tire Tool EAA0304G14A)
- EAA0247G15A Protective Insert for mount/demount head (10 each)
- EAA0304G14A Wave Tire Tool
- EAA0304G92A Magic Bead Pusher (use with MH320 Bead Assist Device)
- EAA0304G43A Bead Breaker Disc (Use with Hex Bar EAA0329G92A)
Accessory
- EAA032G91A Automotive Adapters – Extends outer clamping range up to 30”
Warranty
One (1) year
Product Specifications
- Outer-wheel Clamping Diameter: 12" - 26"
- Inner-wheel Clamping Diameter: 14" - 26"
- Maximum Wheel Width: 16"
- Maximum Tire Diameter: 47"
- Compressed Air Supply: 110 to 170 psi
- Tilt-Tower / Swing-Arm Configuration: Tilt-Tower
- Adjustable 4-Claw Wheel Clamp: Yes
- Integrated Bead-Seating Jets: Yes
- Pressure Limiter: Yes
- Twin Cylinder Turntable Clamping: Yes
- Bead Breaker Power: 3,500 lbs. @ 140 psi
- Bead Breaker Range (Position 1) : 2.5" - 12"
- Bead Breaker Range (Position 2) : 6" - 16.5"
- Recommended Floor Space: 72” W x 78” D
- Shipping Weight : 1,000 lbs.
- Power Requirements: 120 V, 1 Ph, 60 Hz
