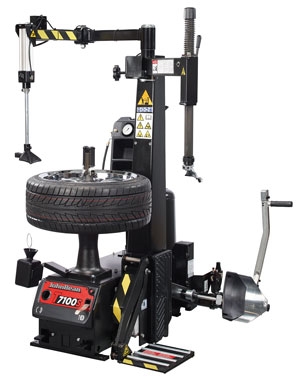

T7100S Center Post Tire Changer
Item Number: EEWH570AC
Supplier:
JOHN BEAN
Description
T7100S center post tire changer designed for easy use with minimal training of technicians reducing shop overhead and adding to your bottom line. Traditional center post design coupled with John Bean’s innovative feature set makes this tire changer highly productive and reduces the risk of wheel damage.
Features
- PROspeed
- Rotational speed maximized by automatic inverter control
- Variable from 7 RPM to 18 RPM offering the highest possible speed for maximum productivity
- Swing Arm Style Mount/Demount
- Traditional mounting head with tire lever
- Quick change design, non-marring plastic and metal mount/demount tools included
- Bead Pusher/Tire Lifting Tool
- Integrated bead pusher assists in the mount/demount process of the upper bead
- Tire lifting tool aids the technician with the demounting process
- Hand Activated Bead Breaker
- Side mounted bead breaker
- Thumb switch activation at the point of use
- Center Post Clamp Design
- Reduces risk of wheel damage
- Accommodates a wider range of wheel sizes
- Integrated Wheel Lift
- Assists technicians with lifting and positioning heavy tires/wheels on the machine
- Integrated roller board eases bead breaking
Warranty
One year
Product Specifications
- Maximum Tire Diameter: 44" (112 cm)
- Maximum Tire Width: 15" (38.1 cm)
- Maximum Rim Width: 14" (35.6 cm)
- Rim Diameter: 12" - 30"
- Maximum Air Pressure: 174 PSI (12 BAR)
- Dimensions: 58" D x 40" W x 76" (147.32 x 101.6 x 193.04 cm)
- Shipping Weight: 1180 lbs
- Power Requirements: 230V 1Ph 50/60Hz 17A
