Item shown may not be actual product.Product and price information are subject to change without notice.
$25,011.72 *
*log in for dealer pricing

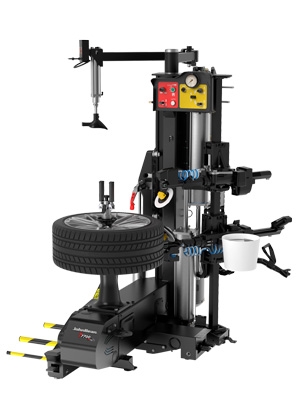

T7700 Leverless Tire Changer
Description
The John Bean® T7700 tire changer provides an advanced set of tools to maximize shop productivity and reduce risk of wheel damage when working with run-flat and high performance tires.
This innovative system features a new center post design and color coded panel for easier, faster and precise operation with minimal training required while reducing shop overhead and adding to your bottom line. Pedal operated wheel lift reduces technician fatigue and the potential for injury.
Features
- Dynamic Bead Breaker
- No wheel damage
- Enhances precision and productivity with synchronized dual disks
- Adjustable pneumatic tilt disk enables easy operation with hard sidewall tires
- Intergrated Wheel Lift
- Assists technicians while lifting and positioning heavy wheels
- Reduces technician fatigue and improves productivity
- Intuitive Control Panel
- Precise, ergonomic and effortless solution
- Simple-to-use controls for improved technician efficiency
- Color-coded system matches panel and tools for easy operation
- Center Post Clamp
- No clamping jaw required guarantees no wheel damage
- Accommodates wide range of wheel sizes
- Top Side Bead Seater
- Ergonomic nozzle sprays a high-speed jet of air inside the tire, raising its bead and sealing the tire on the wheel
- Prpspeed™
- Patented technology automatically reduces speed to ensure that there is never too much tension on the tire, preventing damage
- Continuously monitors torque and automatically reduces speed during critical procedures
Includes
T7700 Leverless Tire Changer
EAA0377G23A Smart Bead Spacer
EAA0408G33A Plastic Tire Protector
EAC0099G38A Bead Extraction Tool
EAA0358G85A Bead Clamp
EAA0304G16A Lube Brush
EAM0058G12A Reduction Cone Ø64mm
EAM0058G07A Reduction Cone Ø78m
EAC0102G25A Reduction Cone Ø145mm
7.5 lbs Lube Bucket, 8-03229A
Cone Kit 42-85mm ((1) Steel Cone, (3) Plastic Protectors), EAK0317G32A
powerMONT™ (10) Upper Tool Protector, EAK0330G57A
powerMONT™ (10) Lower Tool Protector, EAK0330G58A
Warranty
One (1) year
Product Specifications
- Minimum Rim Diameter: 12" - 30"
- Maximum Tire Width: 15” (380 mm)
- Maximum Rim Width: 13” (330 mm)
- Maximum Wheel Diameter: 47” (1200 mm)
- Wheel Lift Capacity: 154 lb (70kg)
- Standard Power Supply: 230V 1ph 50-60hz 16A
- Required Air Pressure: 116 - 174 psi (8-12 bar)
- Dimensions: 58” x 73” x 74” (1481 x 1863 x 1880 mm)
- Shipping Weight: 1047 lbs (475 kg)
