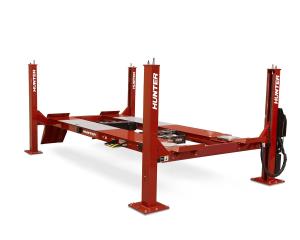

L451JT Four-Post Lift with SS Turnplates, Swing Air Jacks - Red
Item Number: HUN454JTPRR
Supplier:
HUNTER ENGINEERING COMPANY
Description
L454JT Harsh-Duty standard-length four post lift with stainless steel turnplates and two (2) 9,000-lb. swing air jacks
Harsh-Duty Rack Features
- Zinc-rich primer base coat
- Powder top-coat
- Stainless steel slip plate top surfaces and turnplates
- Pre-galvanized and powder coated thresholds
- Epoxy caulking in joints in key visual areas
Features
- High-Capacity
- Lifts 18,000 lbs.
- Integrated Air Line Kit
- Convenient power for air tools at front and rear
- Louvered Locks
- 16 lock heights ensure runways are level
- Long-life galvanized cables
- Control Unit
- Easy-to-use console
- Powerful 3-hp motor
- Umbilical Covering
- Strong and flexible
- Protects air and hydraulic lines from damage
- Two (2) Swing Air Jacks
- Raise vehicles off runways
- 9,000-lb. capacity
- Two (2) Movable Work Steps
- 12 secure positions
- Lightweight design
- Flush Slipplates
- Wheelbases up to 158"
- Tethered pins secure plates on basic models
- Louvered Ramps
- Prevent wheel spin
- More effective than diamond tread or abusive strips
- Pins and Pulleys
- Large- diameter iron pulleys with teflon bearings ensure long-life
- Chrome-plated pins
- Extra-Wide Runways
- Accommodate vehicles up to 92" wide
- Open-Front Accessibility
- Allows easy access to adjustment points and jacks
- Available on long and standard length runway racks
Includes
- Stainless steel turnplates
- Two 9,000-lb. Swing Air Jacks
Product Specifications
- Maximum Vehicle Weight: 18,000 lbs. (8164 kg)
- Max. wheelbase - General service: 193 in. (4902 mm)
- Maximum Wheelbase - Two-Wheel alignment*: 177 in. (4496 mm)
- Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
- Minimum Four-Wheel Alignment: 88 in. (2235 mm)
- Maximum Lifting Height: 75 in. (1905 mm)
- Alignment Height: Any of 16 lock positions
- Minimum height: 8.75 in (222 mm)
- Overall Height: 98 in. (2489 mm)
- Tread width - Min. inside: 40 in. (1016 mm)
- Tread width - Max. outside: 92 in. (2337 mm)
- Motor: 3 hp, 208-230 VAC, 60 Hz, 1 ph
- Air: 90-150 psi (6.2-10.3 bar)**
- *: Long wheelbase vehicles may require jacking compensation
- **: 125 psi required for full jack capacity
