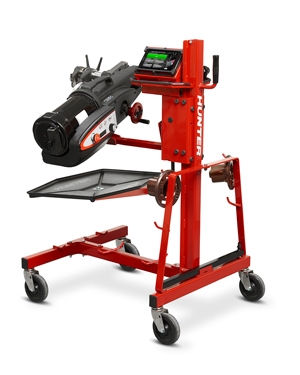

AutoComp Elite™ Passenger Brake Lathe

Description

The Hunter AutoComp Elite™ On-Car Brake Lathe system keeps your brake service a cut above the rest. This is the first brake lathe to introduce Hunter’s revolutionary Anti-Chatter Technology to provide a smoother surface finish. The AutoComp Elite™ virtually eliminates the buildup of vibration (chatter) that can occur when machining rotors at a fixed speed. The AutoComp Elite™ can service each rotor in less than nine minutes and also utilizes exclusive precision machining and Hunter’s patented Variable-Speed Drive System to service rotors at the fastest possible speed without sacrificing quality.

Features

• Automatic Compensation
  • Directly determines compensation and eliminates ‘wandering’
  •  Consistent compensation times average under 12 seconds
• Touchscreen Interface
  • Intuitive touchscreen interface simplifies lathe operation
  • On-board training videos
  • Adapter and vehicle specification lookup
• Anti-Chatter Technology (ACT)
  • Oscillates machining speed to prevent buildup of vibration (chatter)
  • No bands or other devices required
• Variable-Speed Drive System
  • Avoid differential lock-ups by cutting at lower speed
  • No need to disassemble drive train
• Convenient Controls
  • Control lathe operation via the on-board control panel or tablet interface
  • Controls are always upright and easy to read on both sides
• BitMinder
  •  Track cutting bit usage to ensure cut quality and minimize expense
• Precise Machining
  • Unique, stepped cutting pattern prevents radial “push-out” effect
  • True one cut pass
  • No sanding needed
• Reverse Rotation
  • Service more vehicles with significant driveline drag
  • Turn axles that can only be turned in reverse

Includes

• HUN1754921 Adaptor - 4 slot covers most vehicles with 4 lug bolt patterns;
  4x98 mm, 4x100 mm, 4x4.00",  4x4.25",  4x110 mm, 4x4.50", 4x114.3 mm, 4x120 mm
• HUN1754931 Adaptor - 5 slot covers most vehicles with 5 lug bolt patterns;
  5x100 mm, 5x4.25", 5x110 mm, 5x112 mm, 5x4.50", 5x114.3 mm, 5x115 mm, 5x120 mm, 5x4.75"

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Rotor Diameter: 15.75" (400 mm)
• Motor: 1.5 hp (1.12 kw) at 3450 rpm
• Trolley Dimensions: 27.3" W x 30" L (693 mm W x 762 mm L)
• Power Requirements: 115V, 15A, 60Hz, 1 ph NEMA 5-15P plug provided (230 V, 50-60 Hz optional)
• Spindle Speed: Adjustable and auto variable (ACT), 0-150 rpm reversible
• Included Tablet: 7" display with Android® OS
• Lathe Dimensions : 20" W x 15" H x 27" L (508 mm W x 381 mm H x 686 mm L)
• Rotor Maximum Width: 2.75" (70 mm)
• Feed Distance: 4.3" (109 mm)
• Maximum Runout Compensation: .020" (0.5 mm)
• Spindle Height, High Range: 24.5"- 40.5" (622 - 1029 mm)
• Shipping Weight: 302 lbs.
• Spindle Height, Low Range: 20.25" - 36.25" (514 - 921 mm)
