Discontinued

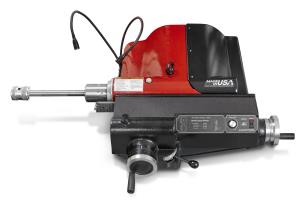

BL00 DRUM ONLY LATHE
Item Number: HUNBL00
Supplier:
HUNTER ENGINEERING COMPANY
Description
The BL Series Bench Lathe is a combination bench lathe that brings speed, precision and versatility to your brake service. The unique design of this combination lathe allows the operator to change the setup of the brake lathe from rotors to drums and vice versa with unprecedented speed and ease. Building on the same industry leading design of our previous bench lathe, the new BL Series Bench Lathe now has optional new features!
Features
- Dual LED Work Lamps (Standard)
- Adjustable lamps illuminate both sides of workpiece
- Easy push button control
- Adjustable Feed Rate (Standard)
- Dial fast for rapid removal or slow for final surface finish
- One-cut pass capable
- Adjustable Spindle Speeds (Standard)
- Provides correct speed for all size workpieces
- No tools required
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Drum Diameter: 6" to 24"
- Drum Max. width: 8"
- Max. weight on 1 in. arbor: 200 lbs.
- Spindle speed(s): 85, 110, 175 rpm
- Feed Rate: .002 to .014 in/rev (infinitely variable)
- Motor: 1.5 hp
- Power Requirements: 115/230 V, 15/7.5 amp, 50/60 Hz, 1ph
- Shipping Weight: 525 lbs. (approx.)
