Brake Lathe with Digi-Cal, Bench, and Basic Adapters

Description

The BL505 Combination Brake Lathe with Digi-Cal, standard accessory package and bench with backboard, chip tray, and storage hooks.  Adapters NOT included.

Digi-Cal Auto Measurement Caliper is the patented Digi-Cal Auto Measurement displays the depth of cut for rotors and drums and also measures thickness, drum diameter and total indicated run-out of the workpiece.

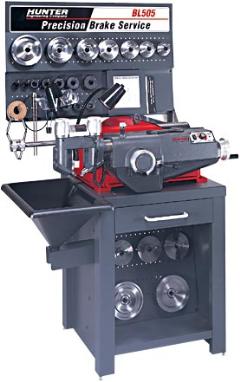

Image shown is HUNBL505DAB.

Features

• HunterPro Self-Aligning Wrenchless Arbor Nut - Allows for quick setup while removing risk of potential overtightening and minor mounting errors.
• Digi-Cal Auto Measuring Caliper - Instantly measures drum or rotor dimensions to determine if the workpiece should be discarded prior to matching.
• Choice of Brake Lathe Tooling - Positive rake tooling ships standard with all lathe packages; negative rake tooling is available as an option.
• Simple Operating Controls - Controls are conveniently located on the front of the lathe; there’s no need for the operator to move to the rear.
• Disc/Drum Control Lockout and Warning Indicator Light - Eliminates potential “crashing” of the machine in drum or disc modes, even with first-time operators.
• Infinitely Adjustable Feed Rate - “Dial-In” fast rate for rapid material removal, very slow for final surface finish or any rate in between for a “one-cut pass.”
• Convenient Tool Tray - Keep favorite brake lathe tooling within easy reach. A built-in tray is located near the front of the machine.
• Easy-To-Access Spindle Speeds - User-adjustable speed settings provide the correct speed for all size workpieces. No tools required.
• Durable, Heavy-Duty Construction - The lathe’s mass of over 500 lbs. helps ensure better stability and accuracy when machining a workpiece.
• Easy-To-Use Clamp Screw - Allows the operator to quickly change setup from rotors to drums and vice-versa.
• Twin Work Lamps - Lamps use brighter, more durable bulbs to illuminate both sides of the workpiece.

Includes

• Brake lathe with Digi-Cal
• HUN2014591 Standard Accessory Kit
• Bench with backboard, chip tray, and storage hooks
• Adaptors NOT included

Accessories (Adaptor Kits)

• HUN2016651- Level 1 Passenger car adaptor kit
• HUN2016661- Level  2 Passenger car and light truck adaptor kit
• HUN2016671- Level 3 3-Jaw chuck passenger car, light truck to 1-ton truck adaptor kit (no composites)
• HUN2016681- Level 4 Passenger car, light truck to 1-ton truck adaptor kit

Warranty

Hunter Engineering Company warrants new equipment to be free from defects in material and workmanship under normal conditions of use for a period of one year (1) from the date of installation. Items warranted for a period of three years include, but are not limited to, all circuit boards, PCs (1)(2) and options installed inside the PC, CRTs (except 111 aligners), power supplies, transducers (3), and wheel balancer motors.

(1) During the first 30 days, complete PCs will be replaced at no charge under warranty. After 30 days, they will be repaired at no charge under warranty. All internal PC components will be replaced at no charge for a period of three years from the date of installation. During the first 90 days, the TC inflator box will be replaced at no charge under warranty; parts will replaced as needed for one year. (2) Printers may be exchanged during the first 90 days under warranty, then they may be repaired under warranty for an additional period of nine months. (3) Transducers include camber cells, brake tester load and weight cells, suspension analyzer pickups, and balancer force transducers.

Product Specifications

• Power Requirements: 115 - 230 volt, 15/7.5 Amp, 50/60 Hz, 1 phase
• Rotors Diameter: 6 - 23"
• Rotors (maximum width): 5-3/8"
• Rotors (maximum thickness): 2"
• Drums Diameter: 6" - 28"
• Drums (maximum width): 8"
• Maximum Weight on 1"' Arbor: 200 lbs.
• Spindle Speed: 85/110/175 r.p.m.
• Feed Rate: 0.002 - 0.014" rev. (infinitely variable)
• Motor: 1 HP
• Shipping Weight: 525 lbs.
