Discontinued

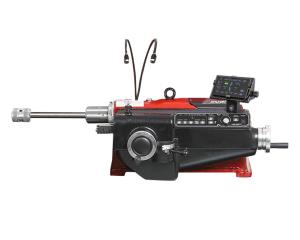

BL Series Drum Only Bench Lathe with DigiCal/ACT and Tablet Interface, No Adapters
Item Number: HUNBL60
Supplier:
HUNTER ENGINEERING COMPANY
Description
BL Series Drum Only Bench Lathe with DigiCal, ACT and tablet interface, no adapters.
Features
- ACT Anti-Chatter Technology
- Oscillates machining speed to prevent buildup of vibrations (chatter)
- No bands or other devices required
- Digi-Cal 2.0
- Instantly measures drum or rotor dimensions and depth of cut
- Calibration hold after power cycling
- Tablet Interface
- Instant access to minimum rotor thickness specs
- Convenient thickness and depth cut display
- Connect to HunterNet® and On-board operation videos
- Self-Aligning Nut
- Speeds setup and prevents over-tightening and mounting errors
- Dual LED Work Lamps
- Adjustable lamps illuminate both sides of workpiece
- Easy push button control
- Adjustable Feed Rate
- One-cut pass capable
- Dial fast for rapid removal or slow for final surface finish
- Push Button Speed Control
- Push button control with three working speeds
- Eliminates belt changes
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Rotor Max. Width: 5-3/8"
- Rotor Max. Thickness: 2"
- Rotor Diameter: 6" to 22"
- Drum Max. width: 8 in.
- Drum Diameter: 6" to 24"
- Max. Weight on 1" Arbor: 200 lbs.
- Spindle Speed(s): 85, 110, 175 rpm
- Feed Rate: .002 to .014 in/rev (infinitely variable)
- Power Requirements: 115/230 V, 15/7.5 amp, 50/60 Hz, 1ph
- Dimensions: 53" x 32" x 21"
- Weight: 519 lbs.
