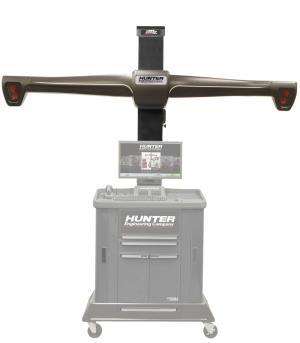

HE421CM Sensors, Portable Center Mount Cabinet Mount, Black
Item Number: HUNHE421CMB
Supplier:
HUNTER ENGINEERING COMPANY
Description
HE421CM Sensors- Portable center mount cabinet mount to the WA47X and WA48X cabinet and may be rolled from bay to bay. A manually operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor.
Features
- Sensor Mount type
- TD Targets
- QuickGrip Adaptors
- Verticle Camera Adjustment
- Mobile - Bay-to-Bay
- QuickComp
- High Resolution Cameras
- CustomizableLighted Sign
- FIA Compatible
- Multiple Target Storage Configurations
- Measurements
- S.A.I. & Included Angle
- Set Back
- Max Steering Angle
- Live Ride Height
- Wheelbase Difference
- Track Width Difference
- Tread Width Difference
- Lateral Offset
- Rear Set Back
- Axle Offset
- SBDA
- Body Angle
- Body Wheel Offset & Setback
- Body Roll
Note: HE421 family sensors:
- Are not compatible with series 111, 211, 311, 411, 511, 611, 811, WA100/WA200 or PA100 consoles
- Require a Series WA600 console with WinAlign version 12.0 or greater software
- Reference Site Requirements for additional details.
Includes
- HUN2025221 Deep-Wheel Extensions
- HUN2025281 Target Storage Brackets
- HUN2025631 Protective Rings for QuickGrip Adaptors TD Targets
- HUN1754091 QuickGrip Adaptors
- Protective Rings for Deep Wheel Extensions
- Quick-Change Arms
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Metal on Metal Contact: Non-Contact
- Weight of Target: 6 lbs
- Profile of Target: 9 in.
- Installation Time: 5 seconds
- Rolling Compensation Style: Forward
- Camera Resolution : 2,608 x 1,952 ; 20,000,000 px
- Track Width: 80 in.
- Wheel Base: 210 in.
- Distance to Wall: 66-107 in.
- Suggested Distance: 99 in.
- Short Bay Distance: 66 in.
