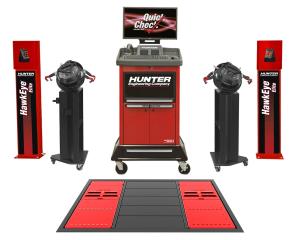

Drive-Thru Quick Check System w/ Flush Mt Quick Tread
Item Number: HUNQC71TF
Supplier:
HUNTER ENGINEERING COMPANY
Description
Hunter's Alignment Quick Check® System with Integrated Tread Check System.
NOTE: The Alignment Quick Check System MUST be installed in a bay or portion of the shop without a lift rack. The system is NOT designed to be used in conjunction with a lift rack. For additional site requirements, contact a program representative.
Quick Check Features
- Provides results in 58 seconds! (70 seconds for Export market)
- (4) High-resolution digital cameras measure angles with pinpoint accuracy.
- Exclusive QuickComp™ compensates all four wheels and captures measurements in one forward roll.
- Color printouts display front and rear total toe, camber on all wheels, and potential pre-mature tire wear.
- Standard VIN bar code scanner instantly enters a vehicle into the system to recall specifications.
- Set up in seconds with QuickGrip adaptors and three-dimensional targets:
- Adjusts easily to various wheel sizes
- Simple, one-touch lock lever - no knob twisting
- Safely grips tire tread - no metal-on-metal contact
- No electronics at the wheel
- Lightweight, compact design
- Shop-touch polymer construction
Quick Tread Features
- Easy-to-understand customizable printouts help sell tires
- Built-in accuracy eliminates human error and guesswork
- Point Cloud measurement technology- measure a full width by two inch segment
- 280,000 data points
- Generate three-dimensional models of the customer's tire
- Powder-coated stainless steel construction to resist corrosion
- Self-cleaning air knife
- Mechanical shutter protects sensors
- Completely sealed sensor housing protects electronic components
Includes
- Compact Cabinet and Widescreen LCD
- Keyboard and Mouse
- Wireless Remote
- Color Printer
- (4) High-Resolution Cameras
- (4) Three-Dimensional Targets
- (2) Sets of 8 Quick-Change Arms
- VIN Bar Code Reader Kit (not available to Export market)
- (4) QuickGrip Wheel Adaptors
- (1) Set of 4 Protective Rings for QuickGrip Wheel Adaptors
- (2) Roll Around Storage Carts
- Quick Tread® Flush-Mounted Sensors
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Quick Check Cabinet Shipping Weight: 132 kg (290 lbs.)
- Power Line Filter: Standard
- Test Entry Speed: 2 to 8 mph (3-13 km/h)
- Quick Tread Shipping Weight: 455 kg (1723 lbs.)
- Drive-thru Capability: Yes
- Assembly Range: Up to 37" (940 mm)
- Compact Cabinet Dimensions: 813 mm x 1651 mm x 584 mm (32"W x 65"H x 23"D)
- Real-time Specs (delivered by web): WebSpecs®
- Quick Check Software: Standard
- Hard Drive: 120 GB Solid State Hard Drive (or greater)
- DVD-RW/CD-RW Drive: Standard
- Monitor Size: 24" (610 mm) Widescreen LCD
- Operating System: Windows® 7 - 64 bit
- Vehicle Specifications (30 plus years): 2 Years free updates
- Wireless Network Module: Standard
- Processor: 3.06 GHz Intel® Core™ i3 - 3.1 GHz (or greater)
- Camera Configuration: Fixed Drive-Through
- Memory: 4 GB of DDR3 SDRAM
- HunterNet®: 3 years free access for 1 user
- QC Alignment Printout: Thousands of available options
- Power Requirements: 115/230V, 15 Amp 50/60 Hz 1 Ph
- Pedestal Location: 914 - 2438 mm (36-96 in.) from nearest QT1 edge
- Printer: Color Ink Jet Printer
- Maximum Wheel Weight: 1,588 kg (3,500 lbs.) per wheel
- VIN Barcode Reader: Standard
- Air Supply Req. (SI Units): 90-150 P.S.I (6.2 - 10.3 bar)
- Wireless Remote: Standard
