Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Quick Tread & Mobile Console w/ Drive Under System
MUST SPECIFY COLOR AT THE TIME OF ORDER.
Description

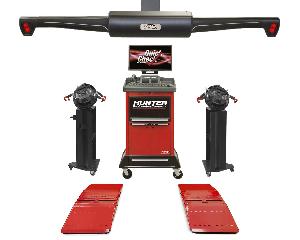

WQ372 Quick Check Mobile Console with HE421DU Drive under Quick Check alignment sensors and surface-mounted Quick Tread drive over tread depth sensors.
The Hunter Quick Check® inspection system with Quick Tread performs a comprehensive vehicle inspection in under two minutes. Valuable information about vehicle's alignment, brake performance, battery health, emissions, and tire health can be handed to customers as they wait. Quick Check allows shops to carefully examine every vehicle that comes to the service lane, increasing revenue and improving customer retention.
Hunter's Quick Check® inspection system expands on the award-winning alignment Quick Check system. The new premium inspection system features an integrated printout that can contain results such as brake performance, tread depth health and battery health. Results can also be sent to Hunter's popular HunterNet™ for analysis and storage. The Quick Tread Drive over tread depth system measures tread depth, analyzes the data on-site and instantly displays the results on your Quick Check console.
Includes
- HUNQC72 Quick Check Drive under System
- HUNQT1 Quick Tread surface-mounted sensors
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Power Line Filter: Standard
- Test Entry Speed: 2 to 8 mph (3-13 km/h)
- Quick Tread Shipping Weight: 241 kg (530 lbs.)
- Drive-thru Capability: Yes
- Assembly Range: Up to 37" (940 mm)
- Compact Cabinet Dimensions: 813 mm x 1651 mm x 584 mm (32"W x 65"H x 23"D)
- Real-time Specs (delivered by web): WebSpecs®
- Quick Check Software: Standard
- Hard Drive: 120 GB Solid State Hard Drive (or greater)
- DVD-RW/CD-RW Drive: Standard
- Monitor Size: 24" (610 mm) Widescreen LCD
- Operating System: Windows® 7 - 64 bit
- Vehicle Specifications (30 plus years): 2 Years free updates
- Equipment Video Help / Assistance: Standard
- Wireless Network Module: Standard
- Processor: 3.06 GHz Intel® Core™ i3 - 3.1 GHz (or greater)
- Camera Configuration: Drive-under
- Memory: 4 GB of DDR3 SDRAM
- HunterNet®: 3 years free access for 1 user
- QC Alignment Printout: Thousands of available options
- Power Requirements: 115/230V, 15 Amp 50/60 Hz 1 Ph
- Pedestal Location: 914 - 2438 mm (36-96 in.) from nearest QT1 edge
- Printer: Color Ink Jet Printer
- Maximum Wheel Weight: 1,588 kg (3,500 lbs.) per wheel
- VIN Barcode Reader: Standard
- Air Supply Req. (SI Units): 90-150 P.S.I (6.2 - 10.3 bar)
- Wireless Remote: Standard
- Quick Check Cabinet Shipping Weight: 132 kg (290 lbs.)
