Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Quick Check Drive w/ Flush-mount Quick Tread Edge, Cabinet-Mount Console, and Vehicle ID, Black
Item Number: HUNQCD72TFRB
Supplier:
HUNTER ENGINEERING COMPANY
Description

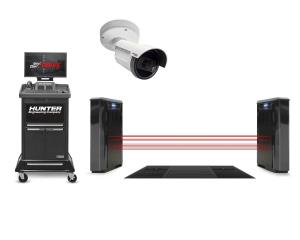

Quick Check Drive Sensors DRV1 with Flush-mount Quick Tread Edge QTEF, and Unmanned Cabinet-Mount Console WU572, and External Vehicle ID (20-3541-1).
Features
Quick Check Drive
- Automatic alignment results
- 32 lasers and 8 cameras scan wheels as they drive past
- Touchless total toe and individual camber
- Unmatched accuracy and repeatability
- No stopping, data entry, or labor required
- Automatic vehicle identification
- Captures front and/or rear license plates
- Automatic license plate-to-VIN conversion
- Automatically determine OEM specs on most vehicles
- Automatic results display
- Display alignment results on large monitor
- Complete transparency for customer
- Ideal for service drive and/or waiting room
- Quick Check Drive™ is integration ready
- Less bay space required
- Automatic body image capture
- Automatic body photos protect against false damage claims
- 40 or more high-definition images of every vehicle on both sides
- Images are stored online for 15 days
Quick Check Edge
- Measures tread depth, analyzes data on-site, and instantly displays results
- Boost most profitable undercar services
- No additional labor required
- Captures accurate tread information on all vehicle traffic
- Increases accuracy by eliminating guesswork and manual inspection
- Detects tread grooves and reports up to six measurements per tire
- Results sent to console and graphically shown for customer
- Built with corrosion-resistant stainless steel, includes self-cleaning air knife
- Flush-mounted configuration integrates seamlessly with Quick Check Drive™
- Stores tread depth records to create customer history for use in marketing efforts
- No recurring monthly charge
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Cable Length: 75 ft. per tower
- Hunter QuickCheck® Software: Standard
- Vehicle Specifications (30 plus years): Standard - 2 years free updates
- Real-time Specs (delivered by web): WebSpecs®
- HunterNet®: 3 years free access for 1 user
- QC alignment printout: Fully customizable
- Internet Connection: 20 Mbps (ethernet cable required)
- License to VIN service: Requires CARFAX EULA on file
- Quick Tread Edge Dimensions: 94" x 52" x 15"
- Quick Tread Edge Weight: 1,723 lbs.
- QCD Sensor Shipping Weight: 140 lbs. (per tower)
- QCD Spacing Between Sensors: 142" - 184"
- QCD Sensor Width: 8"
- QCD Sensor Depth: 41"
- QCD Sensor Depth: 37"
- WU572 Cabinet Width: 32"
- WU572 cabinet height: 65" - 68"
- WU572 cabinet depth: 23.5"
- WU572 cabinet shipping weight: 290 lbs.
- Power requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
- Processor: 3.7 Ghz Intel® Core™ i3
- Memory: 4 GB of DDR3 SDRAM
- Hard drive: 250 GB Solid State Hard Drive (or greater)
- DVD-RM/CD-RW Drive: Standard
- Monitor class: 22" widescreen LCD (QCD92) touchscreen
- Wireless Network Module: Yes- standard
- Operating system: Windows® 10 - 64 bit
- Unmanned console: Standard
- Power line filter: Standard
