Quick Check Drive with Flush-mount Quick Tread Edge, Cabinet-Mount Console, and External Vehicle ID

Description

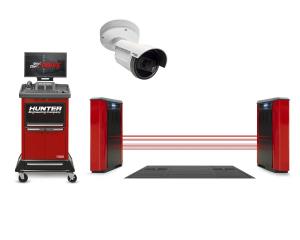

Quick Check Drive Sensors DRV1 with Flush-mount Quick Tread Edge QTEF, and Unmanned Cabinet-Mount Console WU572, and External Vehicle ID (20-3541-1).

Features

Quick Check Drive

• Automatic alignment results
  • 32 lasers and 8 cameras scan wheels as they drive past
  • Touchless total toe and individual camber
  • Unmatched accuracy and repeatability
  • No stopping, data entry, or labor required
• Automatic vehicle identification
  • Captures front and/or rear license plates
  • Automatic license plate-to-VIN conversion
  • Automatically determine OEM specs on most vehicles
• Automatic results display
  • Display alignment results on large monitor
  • Complete transparency for customer
  • Ideal for service drive and/or waiting room
• Quick Check Drive™ is integration ready
• Less bay space required
• Automatic body image capture
  • Automatic body photos protect against false damage claims
  • 40 or more high-definition images of every vehicle on both sides
  • Images are stored online for 15 days

Quick Check Edge

• Measures tread depth, analyzes data on-site, and instantly displays results
• Boost most profitable undercar services
• No additional labor required
• Captures accurate tread information on all vehicle traffic
• Increases accuracy by eliminating guesswork and manual inspection
• Detects tread grooves and reports up to six measurements per tire
• Results sent to console and graphically shown for customer
• Built with corrosion-resistant stainless steel, includes self-cleaning air knife
• Flush-mounted configuration integrates seamlessly with Quick Check Drive™
• Stores tread depth records to create customer history for use in marketing efforts
• No recurring monthly charge

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Cable Length: 75 ft. per tower
• Hunter QuickCheck® Software: Standard
• Vehicle Specifications (30 plus years): Standard - 2 years free updates
• Real-time Specs (delivered by web): WebSpecs®
• HunterNet®: 3 years free access for 1 user
• QC alignment printout: Fully customizable
• Internet Connection: 20 Mbps (ethernet cable required)
• License to VIN service: Requires CARFAX EULA on file
• Quick Tread Edge Dimensions: 94" x 52" x 15"
• Quick Tread Edge Weight: 1,723 lbs.
• QCD Sensor Shipping Weight: 140 lbs. (per tower)
• QCD Spacing Between Sensors: 142" - 184"
• QCD Sensor Width: 8"
• QCD Sensor Depth: 41"
• QCD Sensor Depth: 37"
• WU572 Cabinet Width: 32"
• WU572 cabinet height: 65" - 68"
• WU572 cabinet depth: 23.5"
• WU572 cabinet shipping weight: 290 lbs.
• Power requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
• Processor: 3.7 Ghz Intel® Core™ i3
• Memory: 4 GB of DDR3 SDRAM
• Hard drive: 250 GB Solid State Hard Drive (or greater)
• DVD-RM/CD-RW Drive: Standard
• Monitor class: 22" widescreen LCD (QCD92) touchscreen
• Wireless Network Module: Yes- standard
• Operating system: Windows® 10 - 64 bit
• Unmanned console: Standard
• Power line filter: Standard
