Quick Check Drive Sensors, Wall Mounted WU592 Cabinet, and External Vehicle ID, Black
Item Number: HUNQCD92ECBL
Supplier:
HUNTER ENGINEERING COMPANY
Description

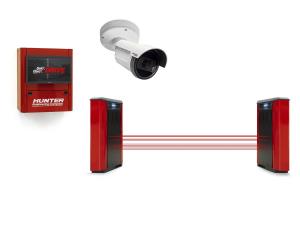

Hunter Quick Check Drive™ Sensors (DRV1), Wall Mounted Console (WU592), Short Focal Length External Vehicle ID (20-3584-1), and Damage-Cam 3 Year Subscription with 15 day image storage (BDC).
Features
- Automatic alignment results
- 32 lasers and 8 cameras scan wheels as they drive past
- Touchless total toe and individual camber
- Unmatched accuracy and repeatability
- No stopping, data entry, or labor required
- Automatic vehicle identification
- Captures front and/or rear license plates
- Automatic license plate-to-VIN conversion
- Automatically determine OEM specs on most vehicles
- Automatic results display
- Display alignment results on large monitor
- Complete transparency for customer
- Ideal for service drive and/or waiting room
- Quick Check Drive™ is integration ready
- Less bay space required
- Automatic body image capture
- Automatic body photos protect against false damage claims
- 40 or more high-definition images of every vehicle on both sides
- Images are stored online for 15 days
Accessories
- HUNES90 Annual subscription for 90 day extended image storage. Requires HUNBDC package.
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- QCD Sensor Shipping Weight: 140 lbs. (per tower)
- QCD Spacing Between Sensors: 142" - 184"
- QCD Sensor Width: 8"
- QCD Sensor Height: 41"
- QCD Sensor Depth: 37"
- WU592 Cabinet Width: 24"
- WU592 Cabinet Height: 28.5"
- WU592 Cabinet Height with Optional Pedestal: 69.5"
- WU592 Cabinet Depth: 13.5"
- WU592 Cabinet Shipping Weight: 155 lbs.
- Power requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
- Processor: 3.7 Ghz Intel® Core™ i3
- Memory: 4 GB of DDR3 SDRAM
- Hard drive: 250 GB Solid State Hard Drive (or greater)
- DVD-RM/CD-RW Drive: Standard
- Monitor class: 22" widescreen LCD (QCD92) touchscreen
- Wireless Network Module: Yes- standard
- Operating system: Windows® 10 - 64 bit
- Unmanned console: Standard
- Power line filter: Standard
- Cable Length: 75 ft. per tower
- Hunter QuickCheck® Software: Standard
- Vehicle Specifications (30 plus years): Standard - 2 years free updates
- Real-time Specs (delivered by web): WebSpecs®
- HunterNet®: 3 years free access for 1 user
- QC alignment printout: Fully customizable
- Internet Connection: 20 Mbps (ethernet cable required)
- License to VIN service: Requires CARFAX EULA on file
