Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
QuickComp™ On-Car Lathe: Passenger
Item Number: HUNQCLHPAS
Supplier:
HUNTER ENGINEERING COMPANY

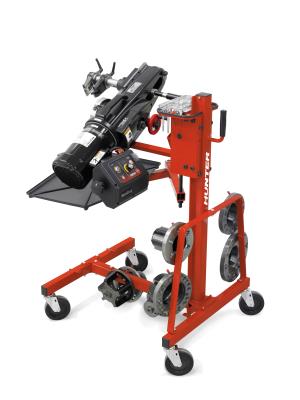

Note: The image shown is the HUNQCLHPRO which includes the Pro Adaptor Package.
Description
QuickComp Lathe with ServoDrive includes reverse function, Quick-Comp adaptor, Speed Wrench, Computer Compensation, Basic Accessories, a 25' power cable, and a Level 1 QuickComp adapter kit
Features
- Smoother Operation
- Integrated adaptor storage
- Stable four wheel design with articulating chip tray
- Pro-Comp Compensation: Simple runout compensation - quick set-up!
- Pivoting Control Module: Operates upright on either side of vehicle - easily accessible adjustments
- Anti-chatter Technology: Oscillates machining speed to prevent buildup of vibration (chatter), providing a smoother surface finish - eliminates the use of chatter bands
- Reverse Rotation: Assists servicing vehicles with excess driveline drag.
- Powerful Motor and Drive - 1.5 hp motor provides unmatched speed and torque.
- Variable-Speed Drive System: Change speed during machining - resurface rotors at fastest possible speed - service rotors on rear locking differentials without disconnecting the driveline.
- Precise Machining: Unique, staggered cutting pattern prevents radial "push-out" effect of typical spiral pattern - finished surface meets or exceeds OEM specifications.
Includes
- Compensation Adaptor
- Speed Wrench
- Standard Accessories
- Adapter Storage
- Chip Tray
- Level 1 QuickComp Adapter Kit
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Dimensions: 27"W x 47"H x 34"D (686 x 1194 x 864 mm)
- Power Requirements: 115V, 15Amps, 60Hz, 1ph NEMA 5-15P (230V, 50-60Hz optional)
- Rotor Max Diameter: 15.75 in. (400 mm) / 16.25 in. (413 mm) *
- Rotor Max Width: 2.75 in. (70 mm) / 3.25 in. (83 mm) *
- Feed Distance: 4.3 in. (109 mm)
- Spindle Speed: Adjustable and auto variable (ACT), 0-120 rpm reversible
- Motor: 1.5 hp (1.12 kw) @ 3450 rpm
- Spindle Height, High Range (R): 24.5"-40.5" (622-1029 mm)
- Spindle Height, Low Range (R): 20.25"-36.25" (514-921 mm) **
- Shipping Weight: 218 lbs. (99 kg)
