RFE31 Road Force® Elite Balancer, Red
Item Number: HUNRFE31
Supplier:
HUNTER ENGINEERING COMPANY
Description

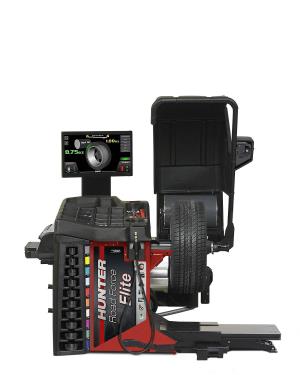

The RFE31 Road Force® Elite Wheel Balancer provides complete wheel diagnostics faster than a traditional balancer. Includes SpeedClamp™ System, Wheel Lift System, and Ink Jet Printer with storage.
Features
- Road Force® roller mimics how a wheel performs under the load of a vehicle to find and solve hidden causes of vibration and vehicle pull.
- Inner and outer camera assemblies use structured light to scan the wheel during spin. There are no moving parts in camera/laser assemblies for ultimate reliability.
- ForceMatching® locates the stiffest area of a tire and the lowest spot on a rim to be marked and match-mounted to cancel radial-force vibration. Now up to 50% faster than the previous version.
- StraightTrak® measures pull forces in tires and recommends wheel placement to cancel vehicle drift. Now measures individual tire pulls!
- Enhanced SmartWeight® utilizes a scanned rim profile to give a more accurate balance, a more single weight solution and increased weight savings.
- eCal™ auto-calibration provides true "self-calibration" without any input from the operator.
- CenteringCheck® verifies proper wheel centering to eliminate setup errors and ensure an accurate balance.
- BullsEye® 10-piece collet set with convenient storage comes standard.
- Laser-guided weight placement speeds service with a standard bottom laser and an optional HammerHead TDC laser.
- HunterNet® allows you to view balancer usage online. See trends on Road Force values, wheel types, weight usage, service and savings.
- Handles assembles up to 175 lbs., 40 in. tire/ 30 in. rim
- Superior alloy balancer shaft with 3 year warranty
- Made in USA
Includes
- SpeedClamp™ System
- Wheel Lift System
- Ink Jet Printer with storage
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
NOTE: Some dimensions, capacities, and specifications may vary depending on model, accessories, and tire and wheel configurations.
Product Specifications
- Maximum Tire Diameter: 40" (1016mm)
- Maximum Tire Width: 20" (508mm)
- Maximum Tire Weight: 175 lbs. (79 kg)
- Radial and Lateral Runout Accuracy: 0.002" (0.051mm)
- Imbalance Resolution: ± 0.01 oz (0.28g)
- Balancing Speed: 300 rpm
- Motor: Programmable drive system and DC motor
- Placement Accuracy: 512 Positions, ±0.35°
- Power Requirements: 196-253V, 10 Amp, 50/60 Hz, 1 Ph (Power cable includes: NEMA 20 Amp plug, L6-20P)
- Air Supply: 100 - 175 psi (7 - 12 bar)
- Roller Force: Variable up to 1,250 lbs. (567 kg)
- Rim Width: 1.5" - 20.5" (38mm - 521mm)
- Rim Diameter: 10" - 30" (254mm - 762mm)
- ALU: 14' - 40" (356mm - 1016mm)
- Dimensions: 72"W x 70"H x 63"D (1829mm x 1778mm x 1600mm)
- Weight: 873 lbs.
