Discontinued

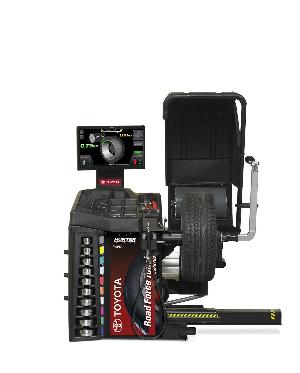

RFT30 Road Force Touch Balancer
Item Number: HUNRFT30TOY
Supplier:
HUNTER ENGINEERING COMPANY
Description
Road Force Touch ® GSP9700 high volume LCD wheel balancer provides complete wheel diagnostics faster than a traditional balance and features a touchscreen interface to simplify operation. Includes AutoClamp, and Wheel Lift.
Features
- Enhance your service by balancing a wheel and performing a Road Force® test in the same amount of time as a typical balance.
- Road Force® roller test a wheel as it would perform under the weight of a vehicle to uncover hidden ride quality issues.
- Intuitive touchscreen interface simplifies operation.
- ForceMatching® optimizes tire and rim match-mounting to cancel radial-force vibration.
- StraightTrak® measures pull foces and recommends wheel placement to nulify vehicle drift. Now measures individual tire pulls!
- SmartWeight® improves overall balancing results, while saving on costs and boosting productivity through more efficient weight application.
- eCal™ auto-calibration provides true "self-calibration" without any input from the operator.
- CenteringCheck® verfies proper wheel mounting.
- TranzSaver™ compares tire circumferences to prevent costly damage to AWD transmissions from mismatched wheels.
- View vehicle specific TPMS reset instructions on-screen.
- On-demand videos assist training and improve overall service.
- Auto-Up Hood saves time by automatically lifting the hood for the operator after spins.
- Integrated Wheel Lift safely services heavy, oversized wheels.
- AutoClamp clamps wheels automatically allowing you to save time and effort.
- Optional HammerHead® TDC Laser features greater weight placement accuracy to avoid mistakes.
- Optional Printer Kit option with storage shelf allows you to print Road Force Measurement® test results, and also sell and perform TPMS work properly and efficiently.
Includes
- AutoClamp
- Wheel Lift
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
NOTE: Some dimensions, capacities, and specifications may vary depending on model, accessories, and tire and wheel configurations.
Product Specifications
- Maximum Tire Diameter: 40" (1016mm)
- Maximum Tire Width: 20" (508mm)
- Maximum Tire Weight: 175 lbs. (79 kg)
- Radial and Lateral Runout Accuracy: 0.002" (0.051mm)
- Imbalance Resolution: ± 0.01 oz (0.28g)
- Balancing Speed: 290-300 rpm
- Motor: Programmable drive system abd DC motor
- Placement Accuracy: 512 Positions, ±0.35°
- Power Requirements: 196-253V, 10 Amp, 50/60 Hz, 1 Ph (Power cable includes: NEMA 20 Ampplug, L6-20P)
- Air Supply: 100 - 175 psi (7 - 12 bar)
- Roller Force: Variable up to 1,250 lbs. (567 kg)
- Rim Width: 1.5" - 20.5" (38mm - 521mm)
- Rim Diameter: 10" - 30" (254mm - 762mm)
- ALU: 14' - 44" (356mm - 1118mm)
- Dimensions: 66"W x 73"H x 62"D (1676mm x 1864mm x 1576mm)
- Weight: 762 lbs. (346 kg)
