Discontinued

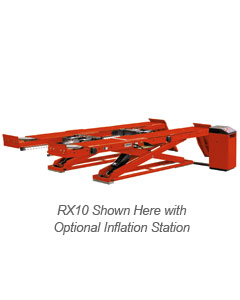

RX10 Surface Mnt Lift Rack
Discontinued. Replaced by RX10 'T' series lifts.
Description
RX Surface-Mount Scissor Rack (10,000 lb. Capacity)
with Air line kit
The Hunter RX10 Lift features a 10,000-lb. lifting capacity and a scissor design requires minimum bay space.
There are many RX-10 models available in surface-mount or flush-mount with various optional add-ons. For assistance in picking the right model for your service facility, call your program representative at 1-888-424-6857.
Features
- Best-in-class lowered height of only 8.75 inches, providing clearance for vehicles with low ride height or low-hanging spoilers.
- Extra-wide 24" runways with louvered ramps prevent wheel spin in wet conditions and make positioning the vehicle on the lift rack easier.
- Open access at the front and rear create an unrestricted workspace underneath the vehicle.
- (2) Lightweight and movable work steps lock into 12 secure positions.
- Safety locks at 16 height positions offer a variety of working heights for the technician.
- Complete operation from the console.
- Velocity safety fuses with instantaneously shutdown in the event of hydraulic failure.
- Sensor Feedback System aid in keeping the runway level and safely stops if an obstruction is detected.
- Chromed pins and teflon bearings for long life.
- 6,000-lb. capacity swing air jacks add the capability of lifting vehicles off the runways during alignment procedures and other service operations.
- An integrated air line kit provides connections at the front and rear for tools and jacks.
- Optional AlignLightsrunway lighting kit illuminates the workspace under the vehicleand turns on and off automatically as rack is raised or lowered.
Includes
- (2) Front wheel stops
- (2) Wheel chocks
- Air line kit
Options
- HUN2021731 AlignLights Accessory
Warranty
Hunter Engineering Company warrants new equipment to be free from defects in material and workmanship under normal conditions of use for a period of one (1) year* from the date of installation. Exceptions to this warranty are listed below:
-
All lift power units are warranted for a period of two (2) years.
Field labor is covered under this warranty for a period of six months.
This warranty does not include normal wear items and does not apply to any product which has been subject to abuse, misuse, alterations, accident, exposure to the elements, tampering, unreasonable use, or failure to provide reasonable and necessary maintenance.
In case of any warranty claim it will be necessary to contact your local authorized Hunter Service Representative. To have an item considered for warranty it must be returned to Hunter Engineering Company for inspection and evaluation. This must be done on a freight-prepaid basis. If after the inspection the product proves to be defective, and is within the time frame specified, Hunter Engineering Company will repair or replace the item at no additional cost.
Product Specifications
- Lifting Capacity: 10,000 lbs.
- Maximum Wheelbase - General Service: 175" (4445 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 162" (4115 mm)
- Minimum Four-Wheel Alignment: 88" (2235 mm)
- Lowered Height: 8.75" (222 mm)
- Alignment Height: All lock positions
- Maximum Lifting Height: 72" (1829 mm)
- Tread Width - Minimum Inside: 40" (1016 mm)
- Tread Width - Maximum Outside: 88" (2235 mm)
- Runway Width: 24" (609 mm)
- Motor: 208-230 VAC / 60 Hz / 26 Amps / 1 Ph
- Air: 90-150 p.s.i.
