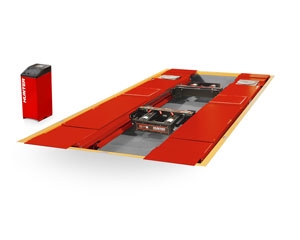

10,000 lb. Flush Mount Scissor Lift, Fully Integrated Alignment
Item Number: HUNRX10KFPS
Supplier:
HUNTER ENGINEERING COMPANY
Description
10,000 lb. capacity flush mount scissor lift, includes Fully Integrated Alignment (FIA), PowerSlide, (2) 6,000lb Swing Jacks, and PowerSlide turnplates.
Features
- Large capacity with a small footprint
- 24 in. wide runways
- Best in class drive on height
- Integrated air line
- Sensor feedback system
- Velocity safety fuses
- Safety locks
- Movable work steps
- Fast descent speed - 50% faster lowering times
- Ensures a soft landing by automatically slowing the last several inches.
- Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations
Includes
- Fully Integrated Alignment
- PowerSlide
- (2) 6,000 lb. Swing Jacks
- PowerSlide Turnplates
- Louvered ramps
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Maximum Vehicle Weight: 10,000 lbs. (4536 kg)
- Maximum wheelbase: General Service: 167" (4241 mm)
- Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 162" (4115 mm)
- Minimum Four-Wheel Alignment: 88" (2235 mm)
- Maximum Lifting Height: 72" (1829 mm)
- Alignment Height: All lock positions
- Speed: 55 seconds raise, 25-50 seconds descent
- Runway width: 24" (609 mm)
- Tread Width - Minimum Inside: 40" (1016 mm)
- Air pressure: 90-150 psi (6.2 - 10.3 bar)
- Tread Width - Maximum Outside: 88" (2235 mm)
