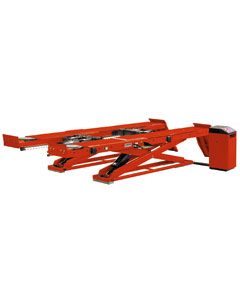

RX-10L Lift Rack - Surface- Mount w/ Inflation Station
Discontinued. Replaced by RX10 'T' series lifts.
Description
RX Surface-Mount Scissor Rack (10,000 lb. Capacity/Long Deck)
with Air line kit, (2) 6,000 lb. Capacity Swing Air Jacks, Power Slide Slipplates and Inflation Station
The Hunter RX10 Lift features a 10,000-lb. lifting capacity and a scissor design that requires minimum bay space. Best-in-class lowered height of only 8.75 inches, providing clearance for vehicles with low ride height or low-hanging spoilers.
There are many RX-10 models available in surface-mount or flush-mount with various optional add-ons. For assistance in picking the right model for your service facility, call your program representative at 888-424-6857.
Features and Benefits
-
PowerSlide locks and unlocks slipplates with the touch of a button, removing the hassle of pulling and replacing lock-pins.
-
Inflation Station uses integrated air hoses at each wheel position to automatically set tire pressure to a pre-selected limit for each wheel simultaneously without cumbersome hoses and repeated gauge checks.
-
Fully Integrated Alignment capability allows communication with a compatible aligner to control PowerSlide and Inflation Station functions automatically.
-
Extra-wide 24" runways with louvered ramps prevent wheel spin in wet conditions and make positioning the vehicle on the lift rack easier.
-
Open access at the front and rear create an unrestricted workspace underneath the vehicle.
-
(2) Lightweight and movable work steps lock into 12 secure positions.
-
Safety locks at 16 height positions offer a variety of working heights for the technician.
-
Complete operation from the console.
-
Velocity safety fuses with instantaneously shutdown in the event of hydraulic failure.
-
Sensor Feedback System aid in keeping the runway level and safely stops if an obstruction is detected.
-
Chromed pins and teflon bearings for long life.
-
6,000-lb. capacity swing air jacks add the capability of lifting vehicles off the runways during alignment procedures and other service operations.
-
A Gray/Dark Gray colored powder coat finish gives an exceptional appearance and durability that is more resistant to damage that occurs in the shop environment.
-
An integrated air line kit provides connections at the front and rear for tools and jacks.
-
Optional AlignLightsrunway lighting kit illuminates the workspace under the vehicleand turns on and off automatically as rack is raised or lowered.
Includes
- (2) Movable work steps (surface-mount models only)
- (2) Front wheel stops
- (2) Two wheel chocks
- Air line kit
- (2) Louvered ramps with built-in wheel stops
- (2) PowerSlide slipplates
- (4) Inflation Station hose reels
- (2) 6,000-lb. capacity swing air jacks
Options
HUN2021731 AlignLights Lighting Kit
HUN2023361 PowerSlide Low-Friction Turnplates (50 mm)
HUN2015791 Center Lift Jack Adapter for swing air jacks. Includes clip-on storage tray.
Warranty
Call your Tool and Equipment Program representative for specific warranty information.
Product Specifications
- Lifting Capacity: 10,000 lbs.
- Maximum Wheelbase - General Service: 192" (4877 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 179" (4547 mm)
- Minimum Four-Wheel Alignment: 88" (2235 mm)
- Lowered Height: 8.75" (222 mm)
- Alignment Height: All lock positions
- Maximum Lift Height: 72" (1829 mm)
- Tread Width - Minimum Inside: 40" (1016 mm)
- Tread Width - Maximum Outside: 88" (2235 mm)
- Runway Width: 24" (609 mm)
- Motor: 208-230 VAC/60 Hz/26 Amps/1 PH
- Air: 90-150 p.s.i.
