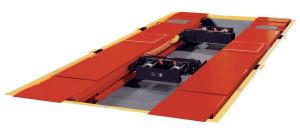

RX12AFTIS 12000 lb Scissor Lift Flush
Item Number: HUNRX12AFTIS
Supplier:
HUNTER ENGINEERING COMPANY
Description
RX12AFTIS 12,000 lb Scissor Lift Flush Mount with fully integrated alignment, Inflation Station, PowerSlide slipplates & turnplates, and two 6,000-lb. swing air jacks.
Features
- 24" Extra-Wide Runways
- Best-In-Class Drive-On Height
- Integrated Air Line Kit
- Sensor Feedback System to keep runway level
- Velocity Safety Fuses to shutdown in event of hydraulic failure
- Safety locks to lock runways at 16 level height positions
- Louvered Ramps to prevent wheel spin in wet conditions
- Chromed pins and bearings for long life
- 6000-lb Swing Air Jacks (2)
- Fully Integrated Alignment
- Power Slide
- Inflation Station automatically fills or bleeds each tire
- Two-Speed Lowering
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Power Requirements: 208-230 VAC, single phase power, 26 Amp
- Air Supply Requirements: 90-150 PSI (6.2-10.3 bar)
- Minimum Concrete Spec.: 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating
- Maximum Floor Slope: 2 in. (51mm) over 126 in. (3200 mm)
- Maximum Vehicle Weight: 12,000 lbs. (5443 kg)
- Max. Wheelbase General Service: 180 in. (4572 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 175 in. (4445 mm)
- Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
- Alignment Height: All lock positions
- Minimum Four-Wheel Alignment: 88 in. (2235 mm)
- Lifting Speed: 55 seconds
- Lowering Speed: 25 seconds
- Outside Width (W1): 88.5 in.
- Inside Width (W2): 40 in.
- Length (L): 228.375 in.
- Runway Width (R): 24 in.
- Raised Height (H1): 71 in
- Depth (H2): 10.5 to 11.5 in.
