Discontinued

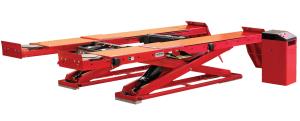

RX12ATIS 12000 lb Scissor Lift
Item Number: HUNRX12ATIS
Supplier:
HUNTER ENGINEERING COMPANY
Description
HUNRX12ATIS 12,000 lb Scissor Lift with fully integrated alignment, Inflation Station, PowerSlide slipplates & turnplates, and two 6,000-lb. swing air jacks.
Features
- 24" Extra-Wide Runways
- Best-In-Class Drive-On Height
- Integrated Air Line Kit
- Sensor Feedback System to keep runway level
- Velocity Safety Fuses to shutdown in event of hydraulic failure
- Safety locks to lock runways at 16 level height positions
- Louvered Ramps to prevent wheel spin in wet conditions
- Chromed pins and bearings for long life
- 6000-lb Swing Air Jacks (2)
- Fully Integrated Alignment
- Power Slide
- Inflation Station automatically fills or bleeds each tire
- Two-Speed Lowering
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Power Requirements: 208-230 VAC, single phase power, 26 Amp
- Air Supply Requirements: 90-150 PSI (6.2-10.3 bar) Jacks require 125 PSI (8.6 bar) @ full capacity
- Minimum Concrete Spec.: 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating
- Maximum Floor Slope: 2 in. (51 mm) over 126 in. (3200 mm)
- Max Vehicle Weight: 12,000 lbs. (5443 kg)
- Max Wheelbase General Service: 184 in. (4673 mm)
- Maximum Wheelbase Two-Wheel Alignment: 179 in. (4547 mm)
- Maximum Wheelbase Four-Wheel Alignment: 158 in. (4013 mm)
- Alignment Height: All lock positions
- Minimum Four-Wheel Alignment: 88 in. (2235 mm)
- Lifting Speed: 55 sec.
- Lowering Speed: 50 sec. / 25 sec. for 2-speed (T-IS)
- Length (L): 266 in. (6766 mm)
- Elevated Length: 234 in. (5943 mm)
- Outside Width (W1): 88.5 in. (2248 mm)
- Inside Width (W2): 40 in. (1016 mm)
- Runway Width (R): 24 in. (610 mm)
- Raised Height (H1): 71 in. (1803 mm)
- Stack Height (H2): 10 in. (254 mm)
